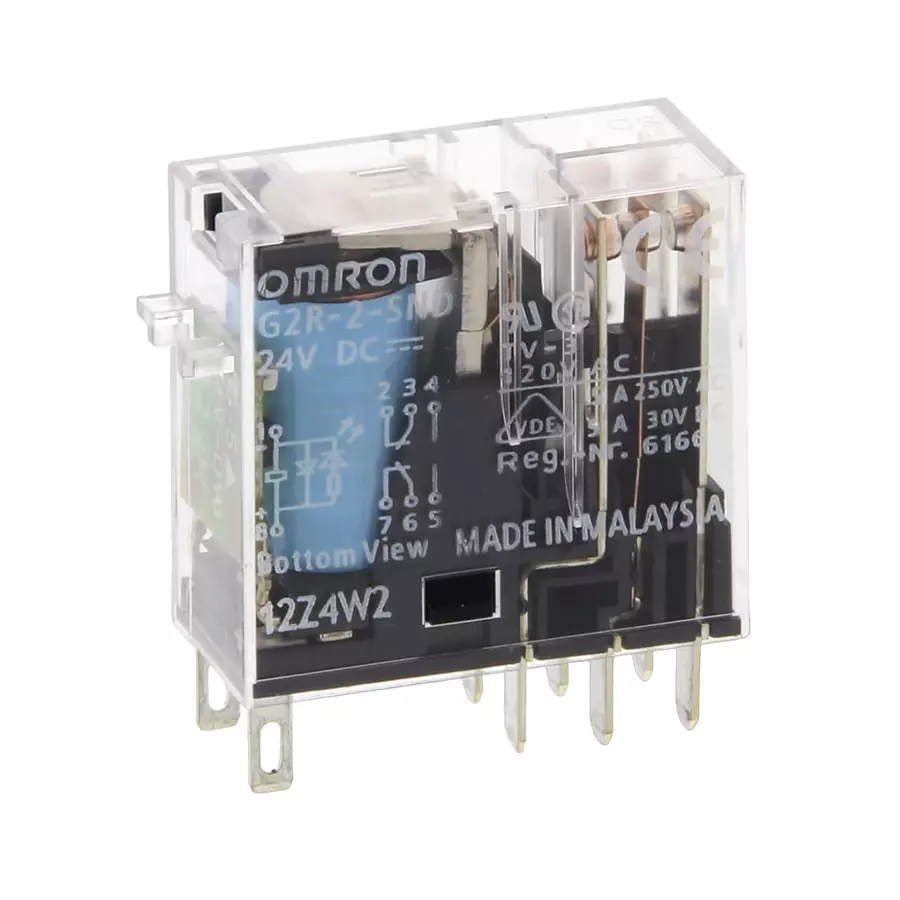

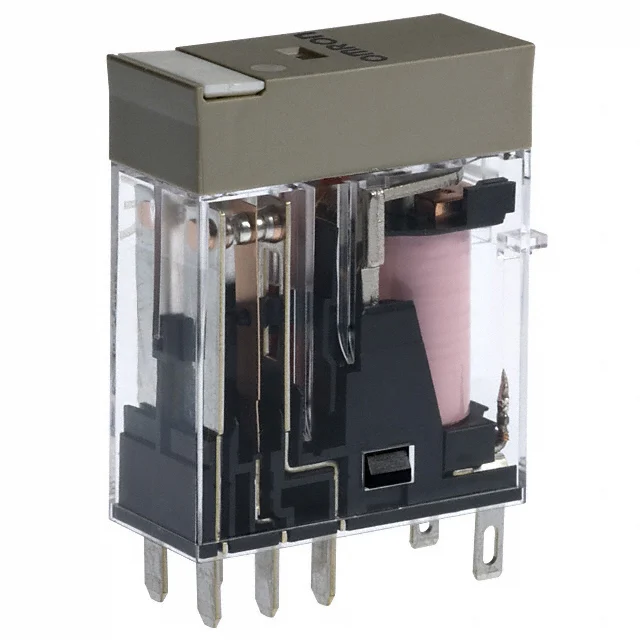

Omron G2R-2-SN Relay

Name: Omron G2R-2-SN Relay
Brand: Vibe Technologies
Price: 500.0 INR
Availability: InStock

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Omron G2R-2-SN Relay Specification

Usage & Applications
Industrial control, automation panels, motor control, power switching

Rated Voltage
24 Volt (V)

Display Type
LED Displays

Rated Current
5 Ampere (amp)

Omron G2R-2-SN Relay Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Paypal

Supply Ability
200 Pieces Per Month

Delivery Time
2 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Omron G2R-2-SN Relay

The Omron G2R-2-SN is a slim, space-saving, DPDT (Double Pole Double Throw) general-purpose power relay used in industrial automation, featuring plug-in terminals, a transparent case, a mechanical indicator, and often an LED for status, allowing it to switch high-power loads (like 10A/250VAC) with various AC/DC coil voltages for applications requiring reliable, compact control.

Key Features & Specifications:

Type: General Purpose Power Relay, DPDT (2 Form C).
Form Factor: Slim, compact, plug-in style.
Contacts: Silver Alloy , rated for up to 10A (or 5A depending on variant) at 250VAC/30VDC.
Coil Options: Wide range of AC (e.g., 120VAC, 240VAC) and DC (e.g., 12VDC, 24VDC, 48VDC) voltages available.
Indicators: Built-in mechanical indicator and sometimes an LED for status.
Test Function: Often includes a lockable test button to manually operate the contacts.
Mounting: Designed for use with compatible sockets (like P2RF series) for DIN rail or surface mounting.
Applications: Power management, process control, automation, motor/conveyor control.

Reliable Operation for Industrial Automation

The Omron G2R-2-SN Relay excels in handling switching loads within industrial control setups, HVAC, and lighting systems. Its electromagnetic theory ensures fast and consistent switching, making it a trusted choice for automation panels and motor control. The combination of high contact load capacity and quick response time streamlines industrial processes and enhances operational safety.

Compact, Durable Design with Versatile Applications

Weighing only 20 grams and with dimensions of 29 x 13 x 36 mm, the G2R-2-SN relay fits easily within limited spaces. The rugged plastic enclosure, available in black or dark grey, protects the relay while the built-in LED display allows straightforward monitoring. This compact relay is suitable for integration in various industrial applications across India.

FAQ's of Omron G2R-2-SN Relay:

Q: How is the Omron G2R-2-SN Relay installed in an industrial control panel?

A: The relay is typically mounted onto a DIN rail or within a relay socket inside the control panel. Wiring is connected to the supply terminals for both the coil (24V DC) and the load circuits as per the wiring diagram provided by the manufacturer.

Q: What applications is this relay best suited for?

A: The G2R-2-SN Relay is ideal for industrial automation, control panels, motor control, power switching, HVAC systems, and lighting controls due to its 5A high power contact load and fast operate time.

Q: When should the relay be replaced or inspected?

A: Routine inspection is recommended during scheduled maintenance of control systems. The relay should be replaced if there are signs of malfunction, such as failure to switch, physical damage, or degraded insulation resistance.

Q: Where can I purchase authentic Omron G2R-2-SN Relays in India?

A: You can obtain this relay from authorized manufacturers, suppliers, or traders specializing in industrial automation components in India. Always source from reputable channels to ensure product authenticity and warranty coverage.

Q: What is the benefit of the LED display on this relay?

A: The integrated LED display provides a clear visual indication of the relay's operating status, helping technicians quickly identify whether the relay is energized or not, simplifying troubleshooting and maintenance.

Q: How does the insulation resistance specification enhance safety?

A: With an insulation resistance of at least 1,000 M at 500 V DC, this relay ensures minimal leakage current and reduces the risk of electrical short circuits, promoting electrical safety and system reliability.

Q: What process should I follow to ensure reliable operation of this relay?

A: Install the relay according to the manufacturer's guidelines, ensure proper voltage supply (24V DC), and periodically check connections. Regular testing and inspection help maintain optimal performance and extend relay lifespan.
