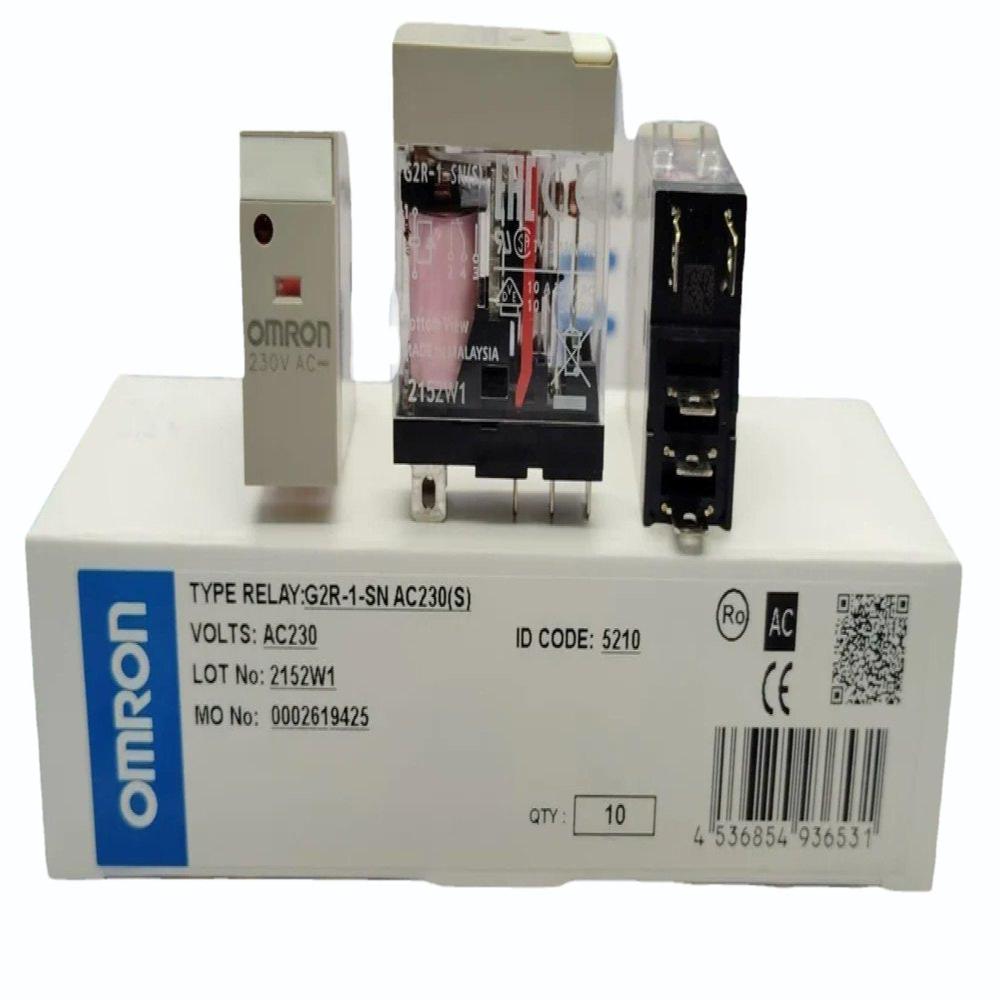

G2R-1-SN-AC230 General-purpose Relay

Name: G2R-1-SN-AC230 General-purpose Relay
Brand: Vibe Technologies
Price: 350.0 INR
Availability: InStock

Price 350.0 INR/ Set

Get a Price/Quote

MOQ : 10 Pieces

G2R-1-SN-AC230 General-purpose Relay Specification

Contact Material
Silver Tin Indium (AgSnIn)

Product Type
General Purpose, Power Relay

Usage
General electrical control and switching in industrial and automation circuits

Rated Voltage
230 Volt (V)

Usage & Applications
General industrial control, power management, automation & process control used in control panels, machinery, appliances, and signal/interface switching.

Color
Transparent/clear body with red LED indicator

Dimension (L*W*H)
29 13 35.5 Millimeter (mm)

Weight
20 Grams (g)

Warranty
1 year

Rated Current
10 Ampere (amp)

Material
plastic (transparent/flame-retardant) housing

G2R-1-SN-AC230 General-purpose Relay Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Paypal

Supply Ability
200 Pieces Per Month

Delivery Time
2 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About G2R-1-SN-AC230 General-purpose Relay

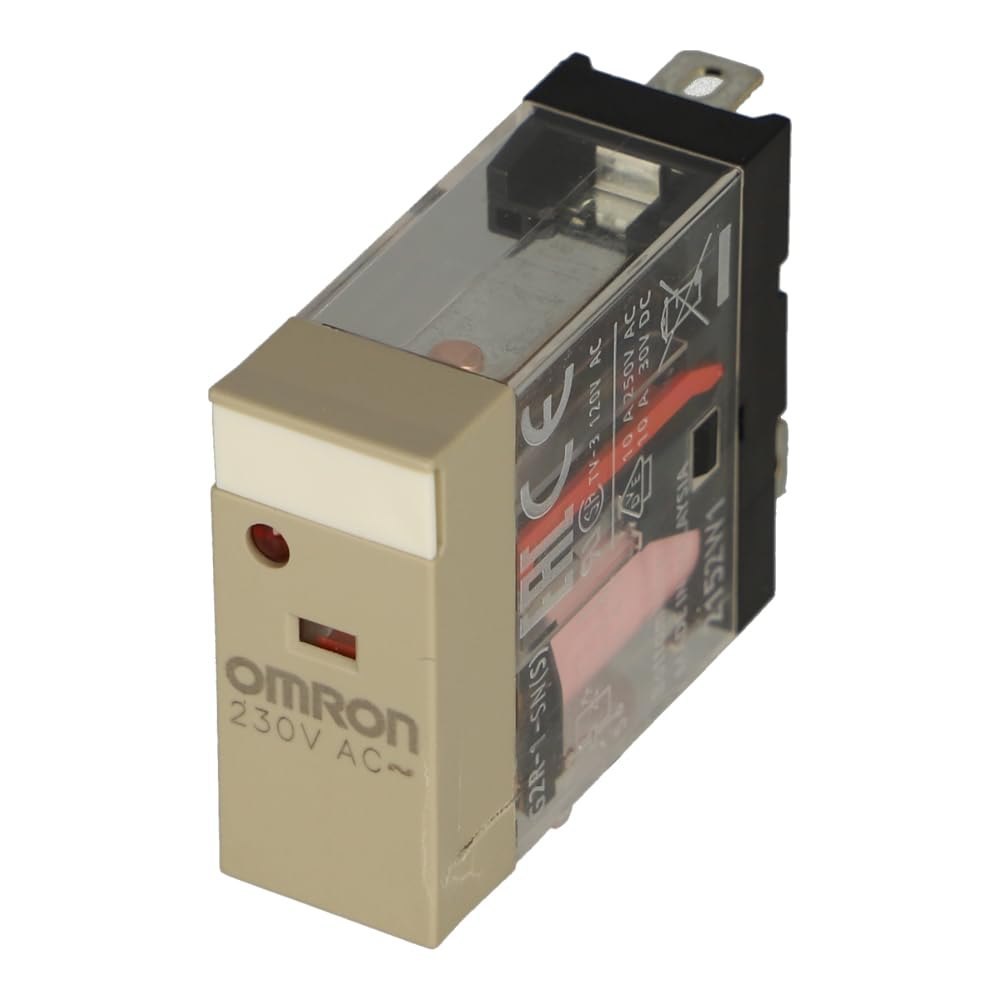

The Omron G2R-1-SN-AC230 General-purpose Relay is a slim, single-pole (SPDT) industrial electromechanical relay designed for general automation, featuring a 230V AC coil, 10A switching capacity, plug-in terminals, a transparent case, and built-in LED indicators, often paired with P2RF-@-PU sockets for easy wiring and installation in industrial control panels.

Key Specifications:

Manufacturer: Omron
Type: General Purpose Power Relay
Poles: 1 (SPDT - Single Pole Double Throw)
Coil Voltage: 230 VAC
Contact Rating: 10 A at 250 VAC / 30 VDC
Mounting: Plug-in (often with compatible sockets like P2RF-05-PU)
Features: LED indicator, mechanical indicator, lockable test button (on some variants), transparent case, AgSnIn contact material.
Applications: Industrial control, interface circuits, space-saving designs.

Reliable General-Purpose Control

The G2R-1-SN-AC230 relay is tailored for consistent power management and automation tasks. Its solid construction and premium contact material guarantee both durability and stable electrical performance, fitting a wide spectrum of industrial applications such as control panels and signal switching.

Enhanced Safety and Visibility

Housed in a flame-retardant, transparent plastic body, this relay not only provides enhanced protection but also eases troubleshooting with its visible red LED indicator. The clear body allows quick verification of relay status, improving safety and operational efficiency.

FAQ's of G2R-1-SN-AC230 General-purpose Relay:

Q: What are the primary applications of the G2R-1-SN-AC230 relay?

A: The relay is primarily used for general electrical control and switching in industrial automation, power management, process control, and signal/interface switching, including installation in control panels, machinery, and appliances.

Q: How is the G2R-1-SN-AC230 relay installed in an electrical circuit?

A: The relay is designed for easy panel or socket mounting in control circuits. Its compact dimensions and lightweight build facilitate straightforward integration into existing or new system layouts.

Q: What materials are used in the construction of this relay, and how do they benefit the user?

A: The relay features a transparent, flame-retardant plastic housing for safety and easy visual inspection, while the contacts are made of Silver Tin Indium (AgSnIn), ensuring excellent conductivity and resistance to corrosion.

Q: When is it ideal to use this relay in an industrial setting?

A: This relay should be used when precise switching and electrical separation are needed, such as in automation circuits, control panels, or whenever managing loads up to 10A at 230V is required.

Q: Where can the G2R-1-SN-AC230 relay be sourced in India?

A: The relay is available through authorized manufacturers, suppliers, and traders across India, specializing in industrial automation and control components.

Q: What is the warranty and support process for this relay?

A: The G2R-1-SN-AC230 relay comes with a one-year warranty. Support can be accessed by contacting the supplier or manufacturer, who will assist with warranty claims and technical queries.

Q: What are the key benefits of the relay's transparent housing and LED indicator?

A: The transparent housing combined with the red LED ensures easy monitoring of relay status and operation, allowing swift troubleshooting and contributing to greater operational reliability.
