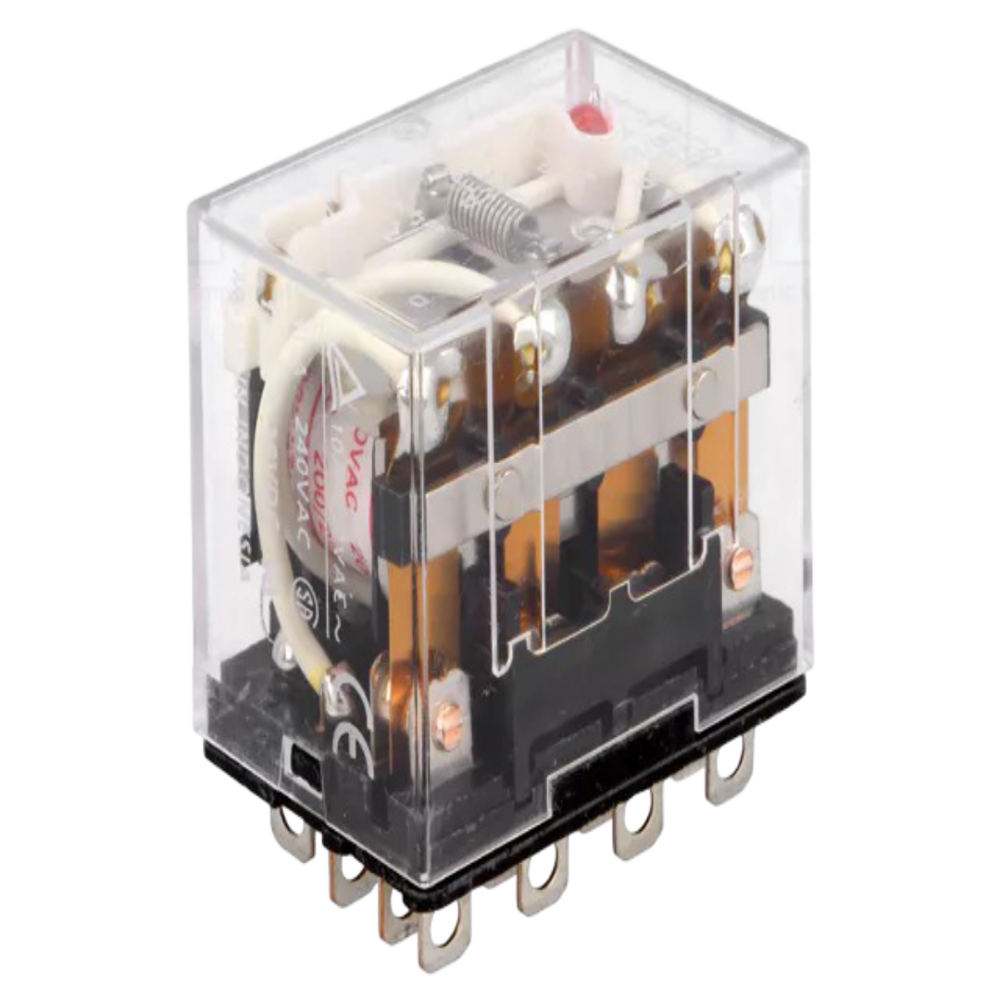

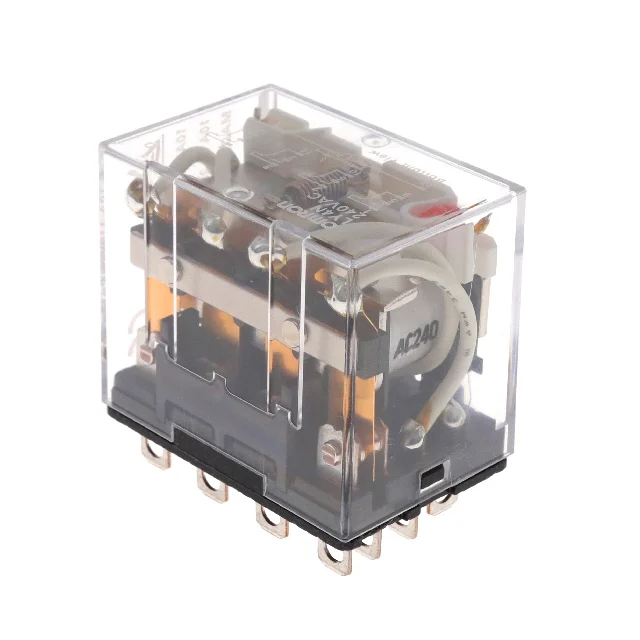

LY4N Series Relays Omron

Name: LY4N Series Relays Omron
Brand: Vibe Technologies
Price: 550.0 INR
Availability: InStock

Price 550.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

LY4N Series Relays Omron Specification

Product Type
Electromagnetic Relay, Bi-Power Relay

Insulation Resistance
100 M at 500 VDC

Usage
Used for industrial control, PLC outputs, automation, and AC/DC load switching.

Terminal Type
General Purpose

Rated Voltage
DC12 V, DC24 V, AC24 V, AC100/110 V, AC200/220 V, AC240 V Volt (V)

Supply Terminal
Coil

Size
Miniature

Color
light gray

Dimension (L*W*H)
Approx. 28 (W) 41 (H) 36 (D) Millimeter (mm)

Weight
70 Grams (g)

Phase
single phase

Rated Current
10 Ampere (amp)

Warranty
1 year

LY4N Series Relays Omron Trade Information

Minimum Order Quantity
5 Pieces

Payment Terms
Paypal

Supply Ability
400 Pieces Per Month

Delivery Time
2 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About LY4N Series Relays Omron

Omron LY4N-DC24 / Omron LY4N-DC12 / Omron LY4N-AC24 / Omron LY4N-AC200/220 / Omron LY4N-D2-DC24

The Omron LY4N Series is a family of general purpose, bi power electromagnetic relays designed for reliable control switching in industrial, automation, and panel applications. They are compact socket mount relays with a common mechanical platform but different coil voltages to suit AC or DC control circuits

Versatile Voltage Range

The LY4N Series relays support a wide range of rated voltages, including DC12V, DC24V, AC24V, AC100/110V, AC200/220V, and AC240V. This flexibility makes them well-suited for diverse industrial environments, helping to simplify system design and compatibility. Operators can leverage these relays wherever variable voltage control or reliable circuit switching is required.

Compact and Durable Design

With dimensions of just 28mm by 41mm by 36mm and weighing 70 grams, the LY4N Series relays ensure installation flexibility in tight spaces while maintaining structural integrity. The sturdy, light gray enclosure safeguards internal components, and general-purpose terminals allow easy integration in control panels and PLCs.

Reliable Performance for Automation

Engineered with high insulation resistance (100 M at 500 VDC) and a rated current of 10A, the LY4N relays excel in automation, industrial control, and both AC/DC load switching applications. Their dependability results in reduced downtime and heightened operational safety, offering a trustworthy choice for demanding industrial tasks.

FAQ's of LY4N Series Relays Omron:

Q: How do I install the Omron LY4N Series relays in an industrial control panel?

A: To install the LY4N Series relays, fit the relay onto the appropriate compatible socket, make connections to the general-purpose terminals according to your control system diagram, and ensure the supply voltage matches the relay's rated voltage. Always follow electrical safety protocols during installation.

Q: What types of applications can benefit from the LY4N Series relays?

A: These relays are ideal for industrial control, PLC output interfacing, automation systems, and switching AC/DC loads. Their versatility and reliability make them suitable for manufacturing, process control, and automation facilities that require dependable circuit switching.

Q: When should I consider replacing or maintaining these relays?

A: Routine inspection is recommended at regular maintenance intervals, as set by your system protocols. Replace the relay if you notice inconsistent operation, indication of wear, or insulation breakdown to ensure continuous and safe operation.

Q: Where can I purchase authentic Omron LY4N Series relays in India?

A: LY4N Series relays are available through authorized manufacturers, suppliers, and traders across India. Always verify the source's authenticity to guarantee product quality and warranty support.

Q: What is the process for switching between AC and DC loads using this relay?

A: Ensure that the connected load and supply voltage are compatible with the specific rated voltage of the relay. Wire the control circuit to the coil terminals, as per manufacturer instructions, and securely connect AC or DC loads to the output terminals for efficient switching.

Q: What are the key advantages of using the LY4N Series relays?

A: The relays provide strong insulation resistance, compact dimensions for space-saving installation, a broad voltage range, and robust switching performance for both AC and DC loads. These factors contribute to enhanced reliability and reduced downtime in industrial control systems.
