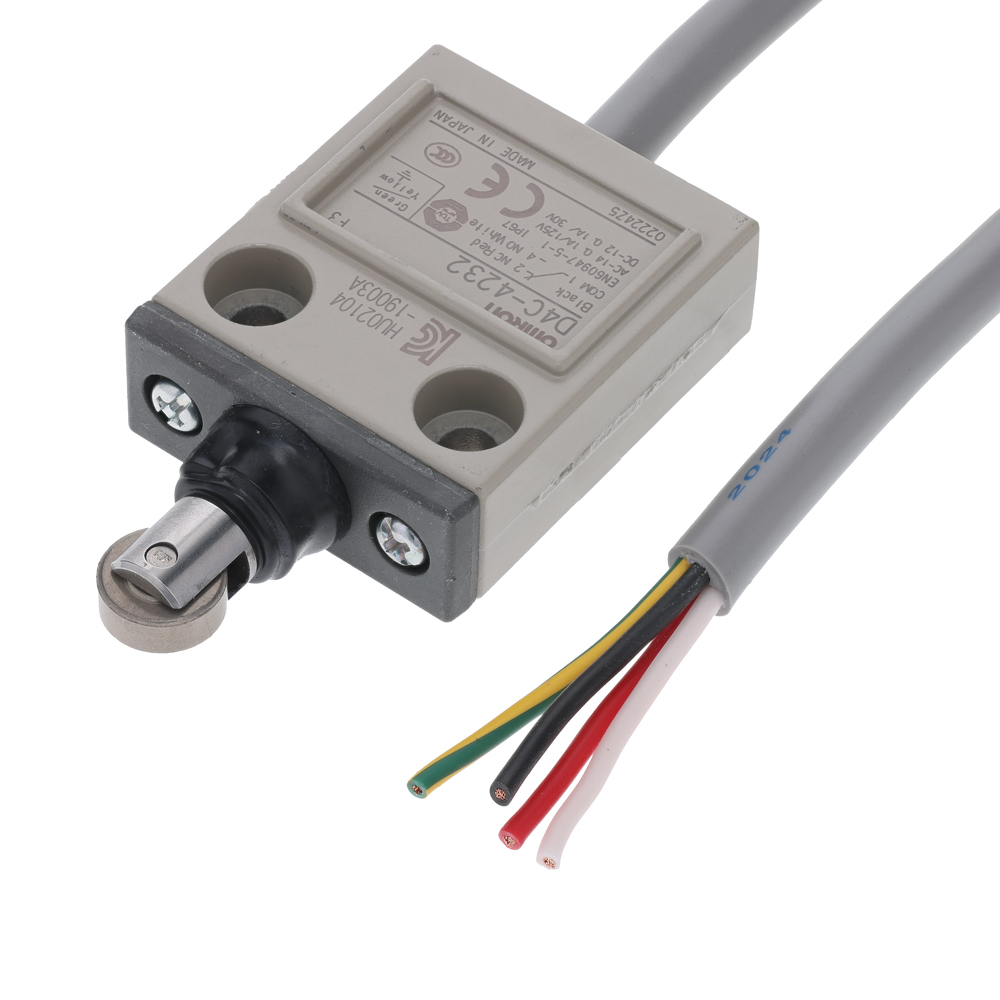

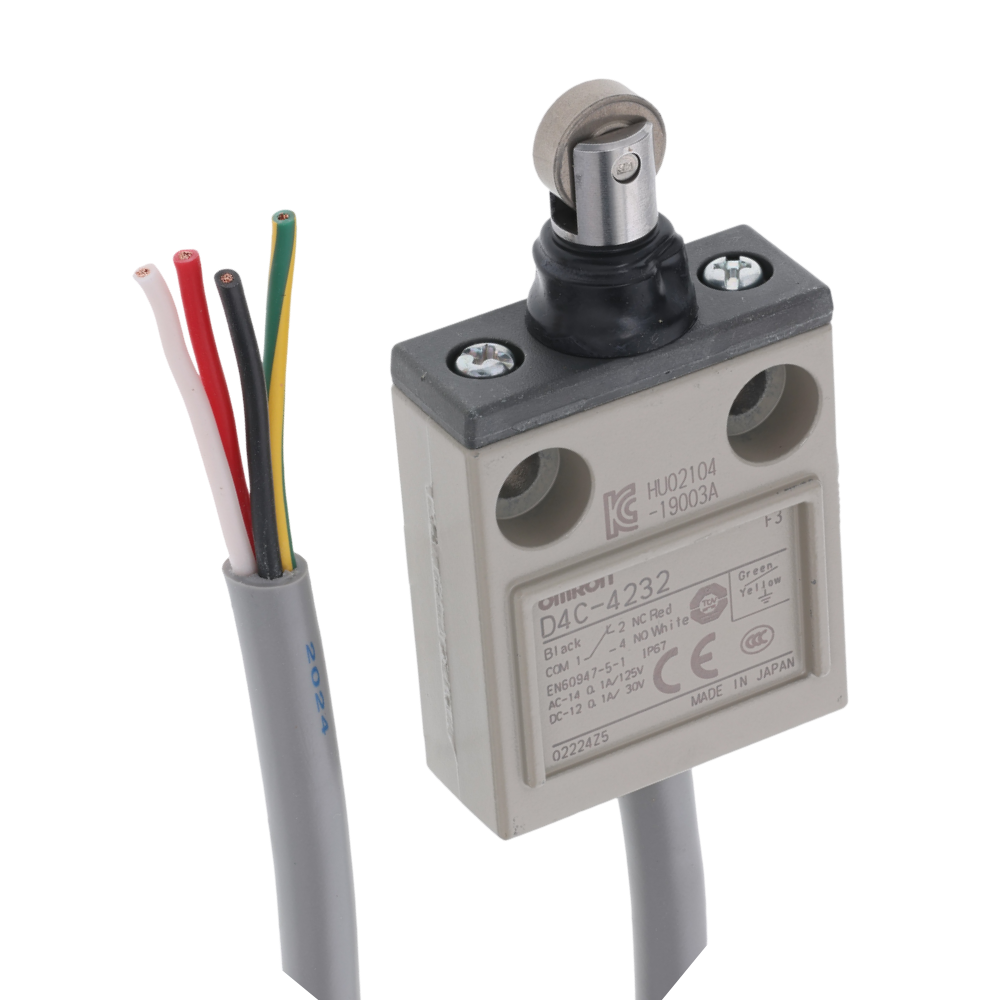

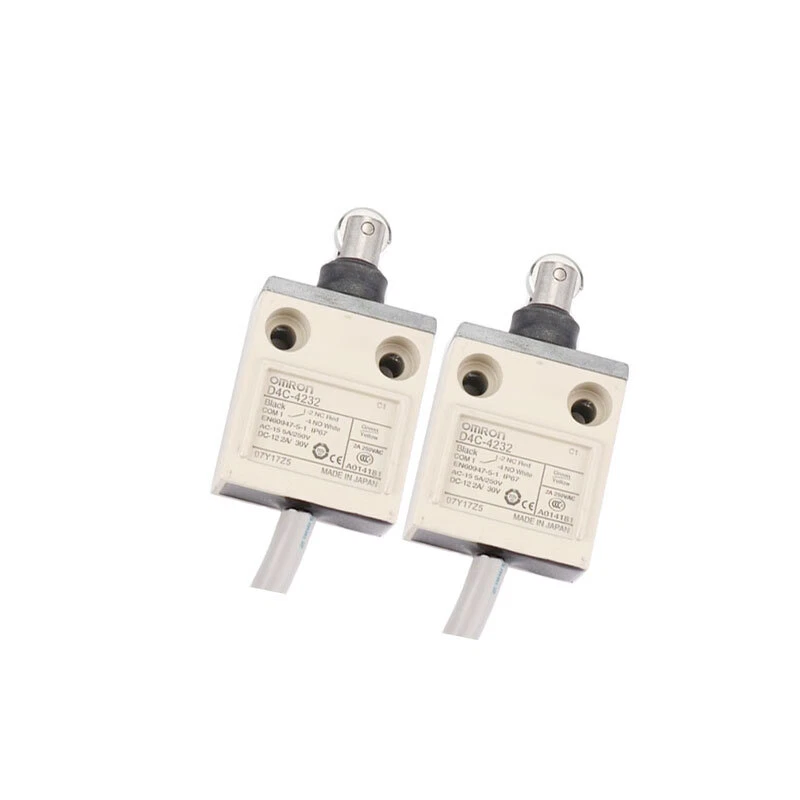

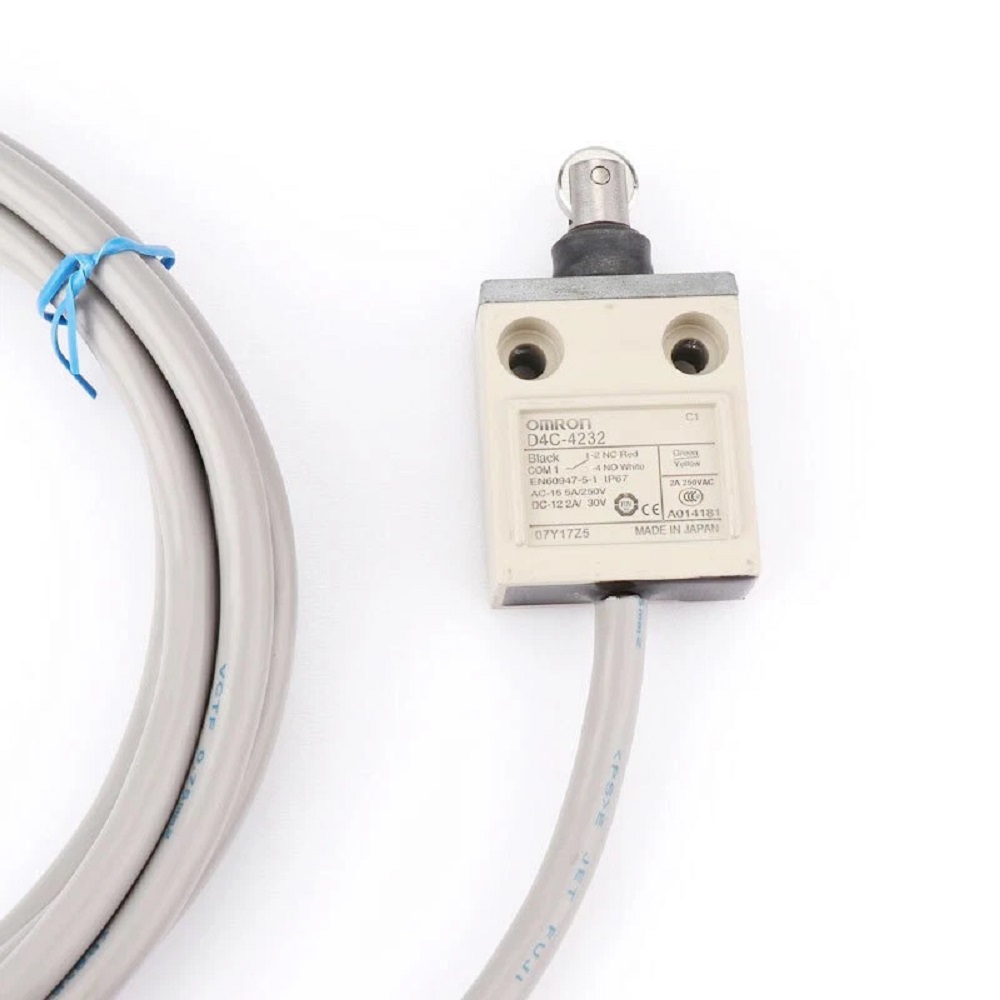

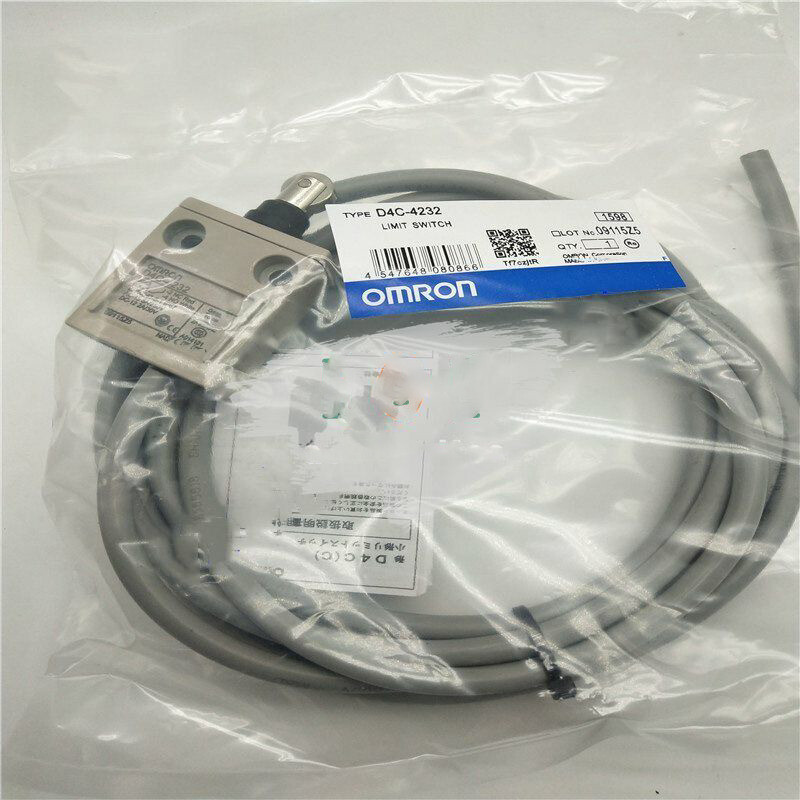

Omron D4C-4232 Limit Switch

About Omron D4C-4232 Limit Switch

The Omron D4C-4232 Limit Switch is a compact, sealed industrial limit switch engineered for precise position detection in demanding automation applications. It features a sealed roller plunger actuator, SPDT snap-action contact, and an oil-resistant 3 m VCTF cable for easy installation. With its rugged metal housing and IP67 protection, the D4C-4232 offers reliable performance in dusty, wet, and harsh industrial environments. It is widely used in conveyors, packaging machinery, machine tools, material handling systems, and factory automation equipment.

• Brand: Omron
• Model: D4C-4232
• Product Type: Enclosed Limit Switch
• Actuator Type: Sealed Roller Plunger
• Contact Configuration: SPDT (1 NO + 1 NC)
• Switch Action: Snap Action
• Rated Voltage: 125 VAC / 30 VDC (Micro Load)
• Rated Current: 0.1 A
• Rated Frequency: 50/60 Hz
• Protection Rating: IP67
• Housing Material: Die-Cast Metal
• Cable Type: Oil-Resistant VCTF Cable, 4 Core, 3 m
• Terminal Type: Pre-Wired Cable
• Operating Speed: 0.1 mm/s to 0.5 m/s
• Mechanical Life: 10 Million Operations
• Electrical Life: 200,000 Operations
• Operating Temperature: -10C to +70C
• Operating Humidity: 35% to 95% RH
