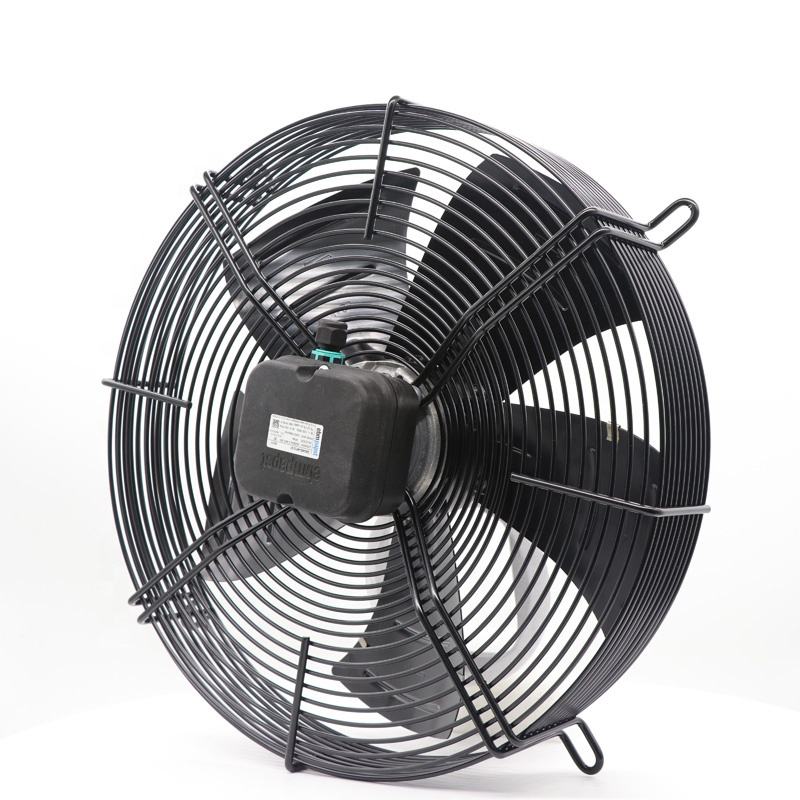

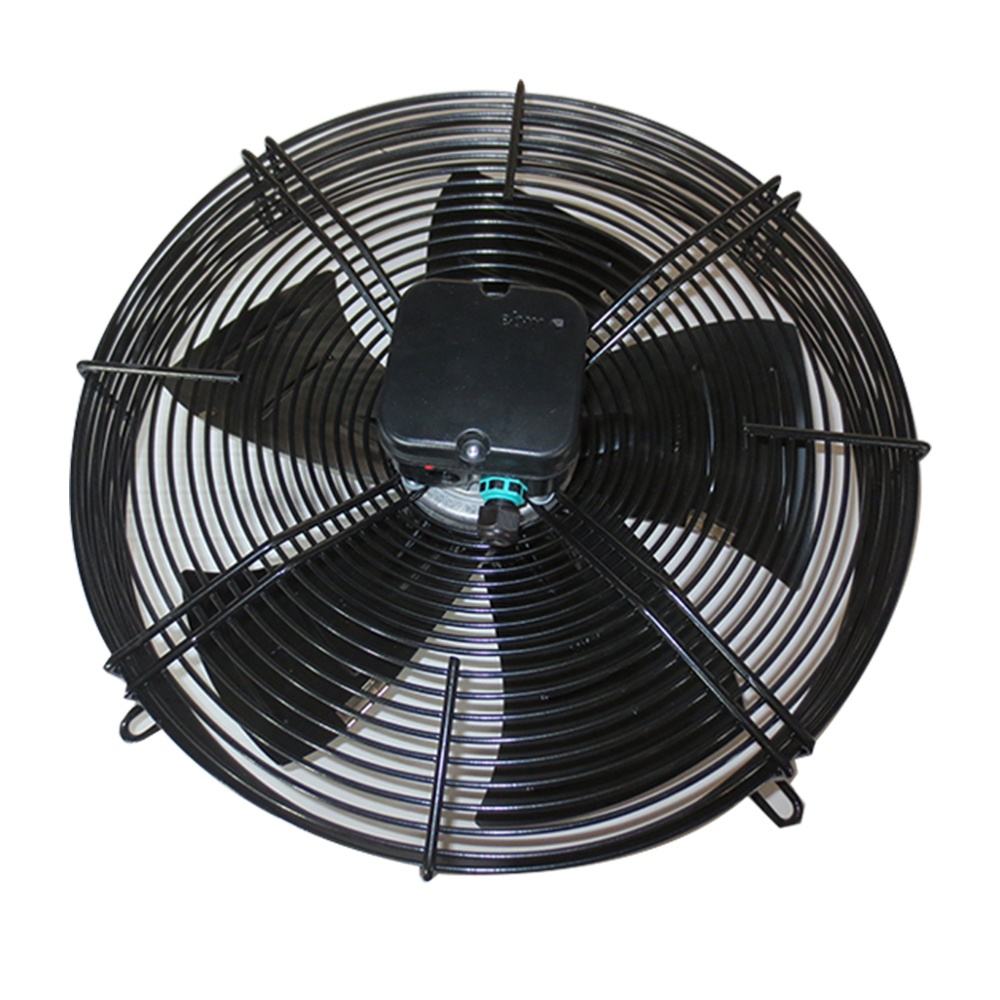

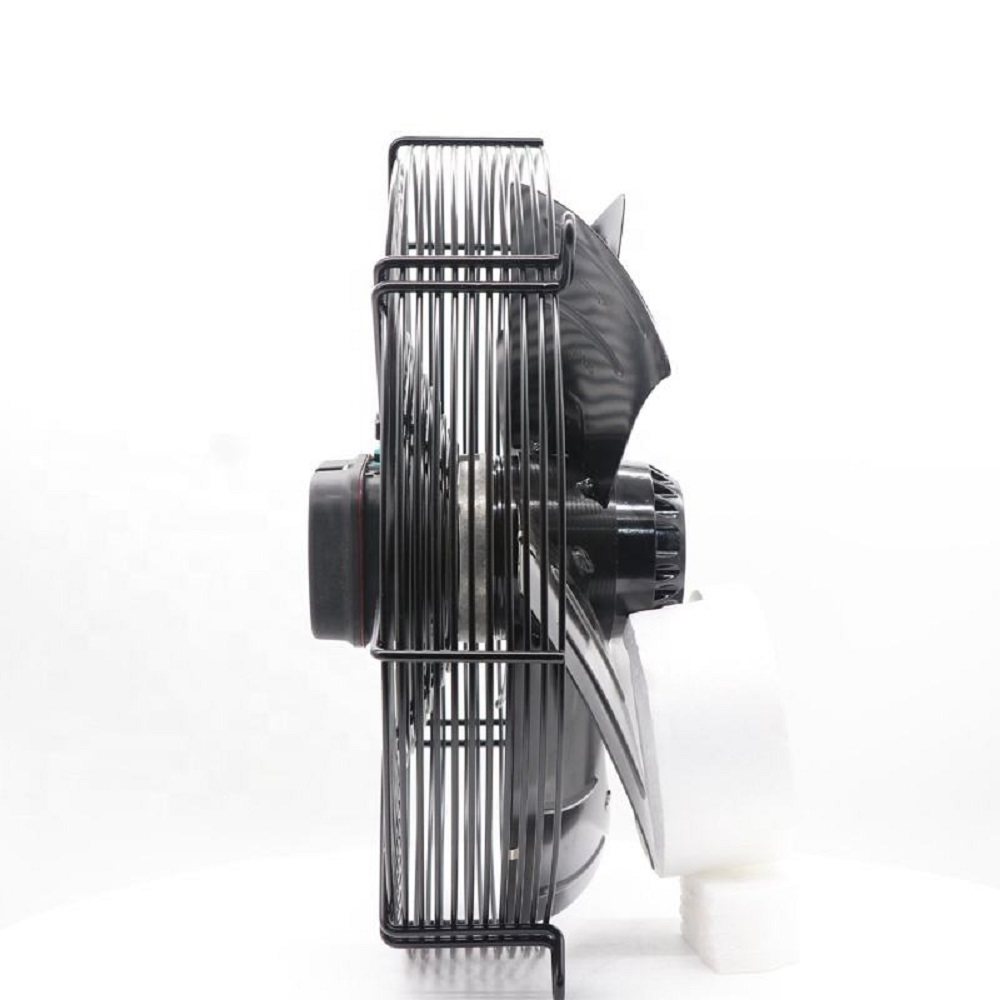

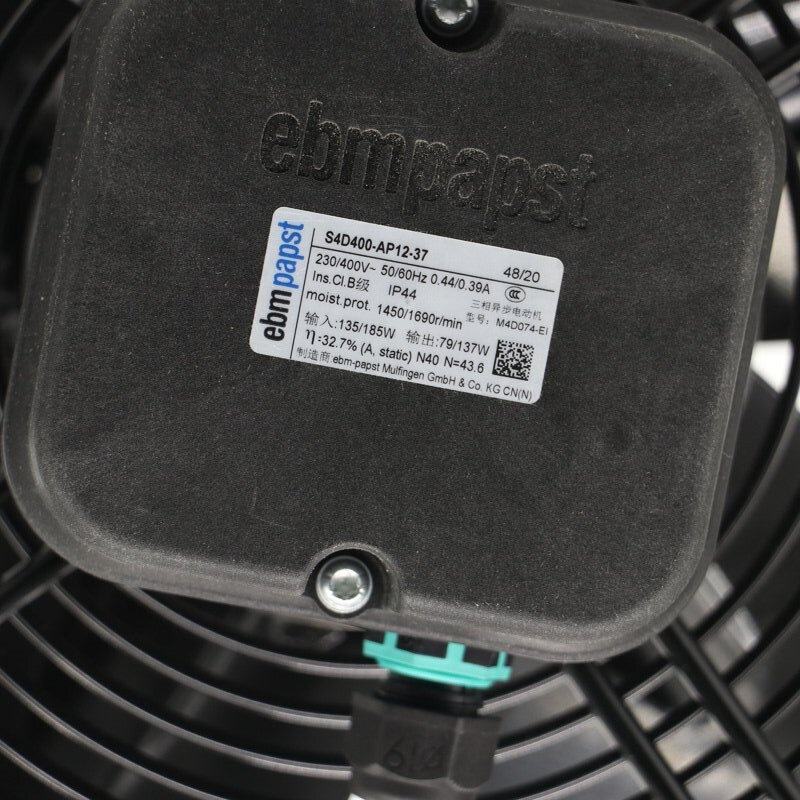

ebm-papst S4D400-AP12-37 AC Axial Cooling Fan

The ebm-papst S4D400-AP12-37 is a high-performance 3-phase AC axial cooling fan designed for industrial ventilation, HVAC systems, refrigeration units, condensers, evaporators, heat exchangers, and cooling equipment. It features a durable steel impeller, energy-efficient motor, low-noise operation, and long-life ball bearings for reliable continuous-duty performance.

Model : S4D400-AP12-37

Brand : ebm-papst

Product Type : AC Axial Cooling Fan

Fan Size : 400 mm

Air Flow : 4000 m/hr (Maximum)

Motor Power : 180 W (135 W @ 50 Hz / 185 W @ 60 Hz)

Speed : 1500 RPM (1450 RPM @ 50 Hz, 1690 RPM @ 60 Hz)

Phase : Three Phase

Voltage : 230/400 VAC

Frequency : 50/60 Hz

Current : 0.76 A / 0.44 A

Maximum Static Pressure : 120 Pa

Blade Material : Mild Steel

Number Of Blades : 5 Blades

Bearing Type : Ball Bearing

Protection Class : IP44

Insulation Class : Class B

Mounting Type : Flange Mounted

Rotation : Counter Clockwise (Viewed from Rotor Side)

Air Flow Direction : V

Overall Diameter : 470 mm (47 cm / 18.50 in)

Fan Blade Diameter : 400 mm (40 cm / 15.75 in)

Overall Depth : 132 mm (13.2 cm / 5.20 in)

Cable Connection : Terminal Box

Operating Temperature : -40C to +40C

Net Weight : 5.7 kg (12.57 lbs)
