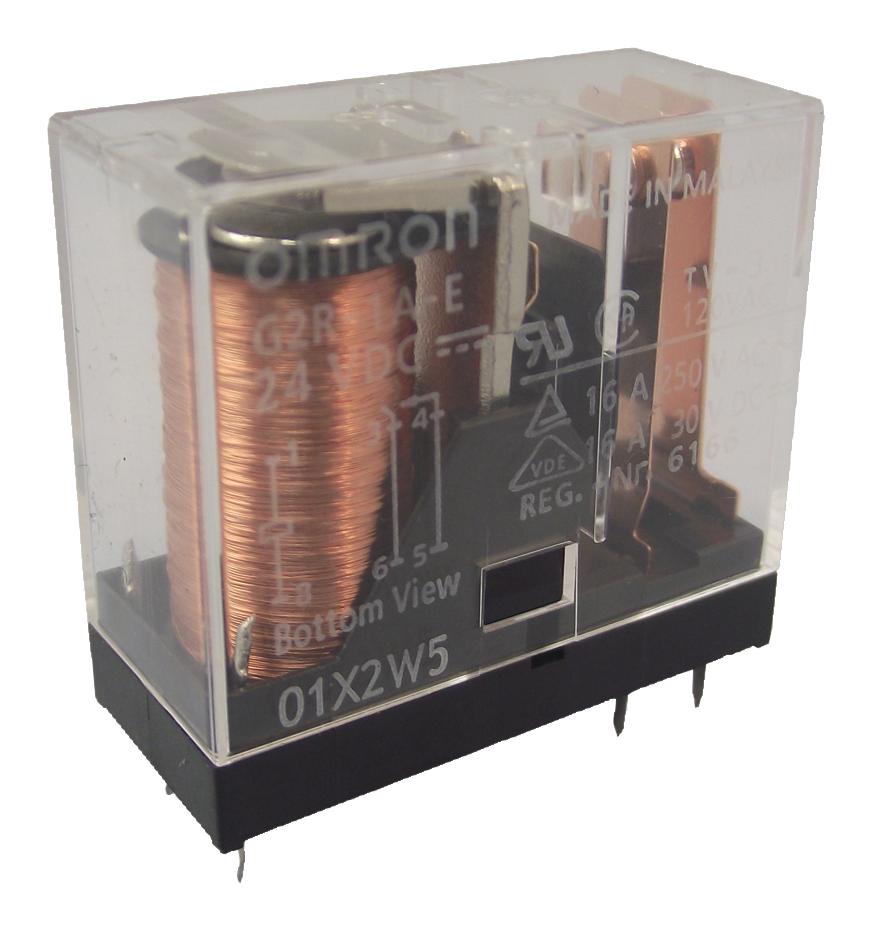

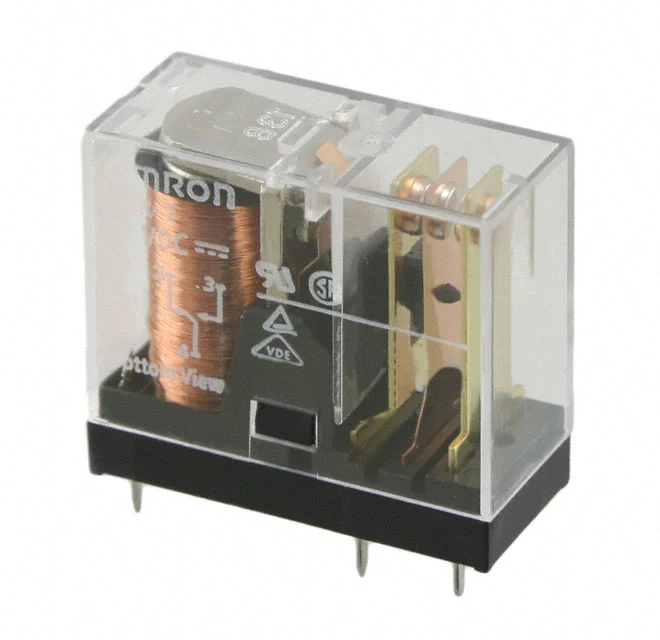

Name: G2R-1A-E-DC24 PCB Power Relay
Brand: Vibe Technologies
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

G2R-1A-E-DC24 PCB Power Relay Specification

Usage & Applications
PCB power relay for reliable electrical load switching in control circuits.

Rated Current
16 Ampere (amp)

G2R-1A-E-DC24 PCB Power Relay Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Paypal

Supply Ability
400 Pieces Per Month

Delivery Time
5 Days

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About G2R-1A-E-DC24 PCB Power Relay

1General purpose power Relays of singlepole10 A and doublepole 5 A

Safetyoriented design with dielectric strength of 5000 V between coil and contacts and surge resistance of 10000 V

AC and DC types are both available for operational coils

FAQs of G2R-1A-E-DC24 PCB Power Relay:

Q: What is the input coil voltage for the G2R-1A-E-DC24 PCB Power Relay?

A: The input coil voltage is 24V DC.

Q: What is the current rating of this PCB Power Relay?

A: The current rating is 16A.

Q: What type of material is used for the relay casing?

A: The relay casing is made of plastic.

Q: What is the IP Rating of the G2R-1A-E-DC24 PCB Power Relay?

A: The IP Rating is IP40.

Q: What is the warranty period for this product?

A: The warranty period is 1 year.

Q: What is the size of the relay?

A: The size of the relay is 29 mm 13 mm 25.5 mm (LWH).

Q: What type of conductor does the relay use?

A: The relay uses a silver alloy conductor.

Compact Reliability for Control Circuits

The G2R-1A-E-DC24 relay combines compact size with robust performance, providing exceptional electrical load switching in control applications. Its transparent body allows for easy visual inspections, while the 24V coil voltage and 16-amp rated current accommodate a wide range of operational needs. Perfect for PCB mounting, this relay offers reliable operation for engineers and system designers working with limited space.

Built for Easy Integration

With PCB terminals and standardized dimensions, the G2R-1A-E-DC24 relay is designed to seamlessly fit into your control circuits. Its simple mounting process ensures quick assembly, and its lightweight build (17 grams) makes it a practical choice for modern electronic devices. The included 1-year warranty provides added peace of mind for manufacturers and end-users alike.

FAQ's of G2R-1A-E-DC24 PCB Power Relay:

Q: How is the G2R-1A-E-DC24 relay integrated into a PCB control circuit?

A: The G2R-1A-E-DC24 relay features PCB-style terminals, making it easy to solder directly onto printed circuit boards. Its compact size ensures it fits neatly into crowded control panels or tight enclosures.

Q: What are the main applications for this relay?

A: This relay is primarily used for reliable electrical load switching in control circuits, suitable for industrial equipment, automation panels, and various other electronic systems requiring dependable performance.

Q: When should I consider using the G2R-1A-E-DC24 relay?

A: You should use this relay when your application demands consistent electrical isolation and switching with a 24V DC supply, handling up to 16A of current, especially where space is limited.

Q: What benefits does the transparent housing provide?

A: The transparent casing allows users to visually inspect the internal mechanism, facilitating quick maintenance checks and making it easier to identify issues.

Q: Where is this relay manufactured and available?

A: Manufactured and supplied in India, the G2R-1A-E-DC24 relay is available through local suppliers, manufacturers, and traders across the country.

Q: How long does it take for the relay to operate once energized?

A: The relay has an operate time of 15 seconds, which means it will switch its state within this period after the coil is energized.

Q: What warranty coverage does the G2R-1A-E-DC24 offer?

A: This relay comes with a 1-year warranty from the manufacturer, covering any defects in material or workmanship under standard usage conditions.
