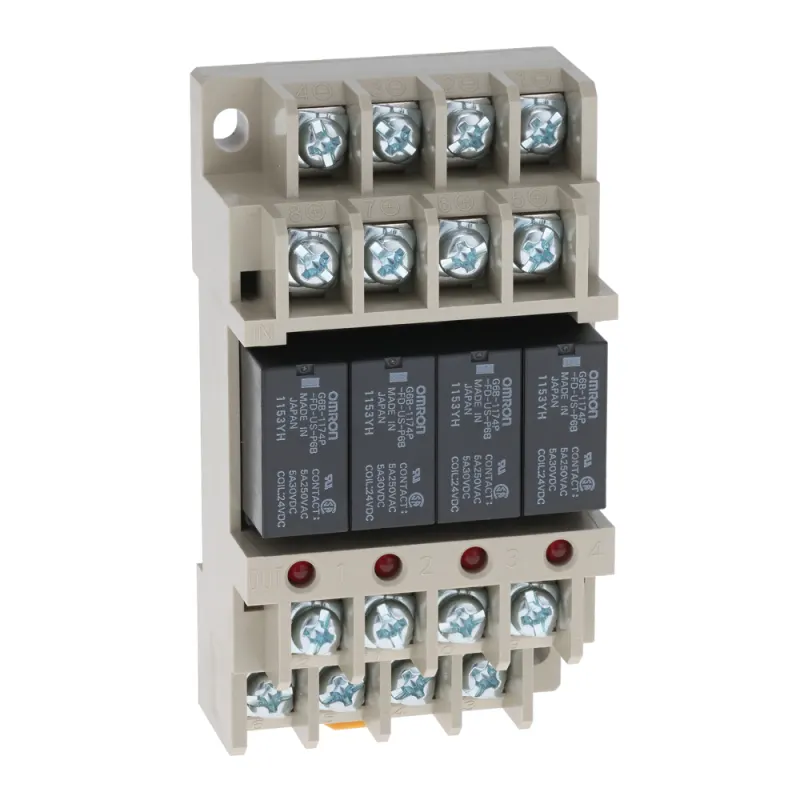

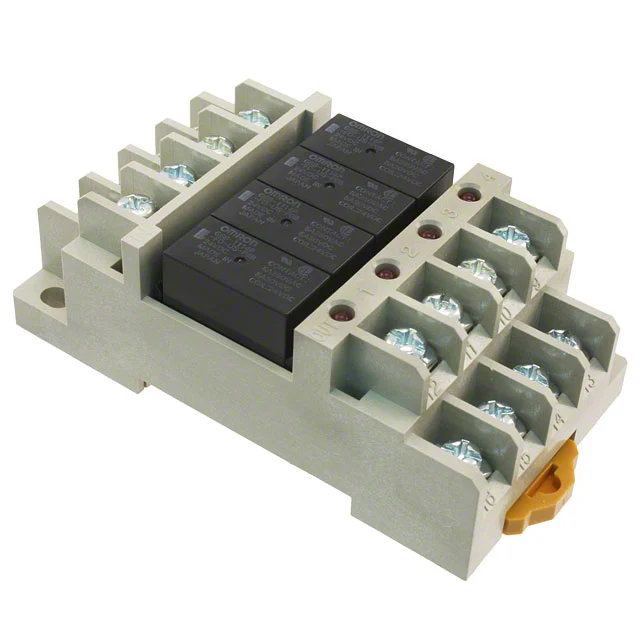

Omron G6B-47BND-DC24 Terminal Relay

Name: Omron G6B-47BND-DC24 Terminal Relay
Brand: Vibe Technologies
Price: 2500.0 INR
Availability: InStock

Price 2500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Omron G6B-47BND-DC24 Terminal Relay Specification

Material
plastic housing

Rated Current
5 Ampere (amp)

Omron G6B-47BND-DC24 Terminal Relay Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Paypal

Supply Ability
150 Pieces Per Month

Delivery Time
2 Week

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Omron G6B-47BND-DC24 Terminal Relay

The Omron G6B-47BND-DC24 is a 4-pole, 24 VDC general-purpose terminal relay, featuring compact G6B mini-relays, LED indicators, surge protection diodes, and AgSnIn contacts, designed for easy wiring in control panels (like PLC interfaces) to switch up to 5A loads, often used with P6B sockets for quick replacement.

Key Specifications & Features:

Type: Terminal Relay (4-Pole, G6B Series)
Coil Voltage: 24 VDC
Contact Rating: 5 Amps
Poles: 4
Construction: Sealed plastic, compact
Indicators: Built-in LED for operation
Protection: Built-in diode for coil surge absorption (ND type)
Contacts: AgSnIn (Silver Tin Indium) for inductive/capacitive loads
Application: Connecting PLC outputs to solenoid valves, motors, etc.
Socket: Requires a P6B socket for mounting and easy replacement

Miniature Efficiency Meets Robust Design

With its compact yet sturdy plastic housing, the Omron G6B-47BND-DC24 delivers reliable performance in constrained industrial spaces. Its 5A rated current, 24V coil voltage, and SPST contact form suit a wide variety of control or signal switching setups. The relay's strong build enhances longevity even in demanding environments.

Ideal for Industrial Control Automation

Engineered as a time relay, this Omron model optimizes industrial automation processes. Its fast switching and dependable connectivity help streamline complex operations, ensuring precise timing and seamless integration within broader control systems.

FAQ's of Omron G6B-47BND-DC24 Terminal Relay:

Q: How does the Omron G6B-47BND-DC24 Terminal Relay function in an industrial control system?

A: This relay operates as a time relay with SPST contacts, enabling or interrupting circuit connections to allow controlled switching of devices in automated industrial processes. Its 24VDC coil power triggers the switching mechanism when appropriately energized.

Q: What are the key benefits of using this relay in signal switching applications?

A: The relay offers quick response times, dependable isolation between control and output circuits, and a compact design ideal for tight control panels. Its 5A current capacity and robust plastic construction enhance safety and reliability in signal switching.

Q: When should this relay be used, considering its specifications?

A: Use the G6B-47BND-DC24 in applications requiring miniature relays, high switching reliability, and 24VDC operation-particularly in manufacturing, process control, or automation systems where circuit timing and isolation are essential.

Q: Where can the Omron G6B-47BND-DC24 be installed within an industrial setup?

A: It's suitable for installation in control cabinets, automation panels, or other electrical enclosures where centralized command of machinery or signals is needed, and where space efficiency is a priority.

Q: What is the process for wiring this terminal relay?

A: Ensure the relay is de-energized before connecting wires to the input coil and output contact terminals. Follow the manufacturer's wiring diagram to connect the device in your circuit, observing voltage and current limits.

Q: What warranty and support are provided for this relay in India?

A: Supplied by authorized manufacturers, traders, and suppliers in India, the relay comes with a 1-year warranty covering manufacturing defects or functional failures under normal usage.
