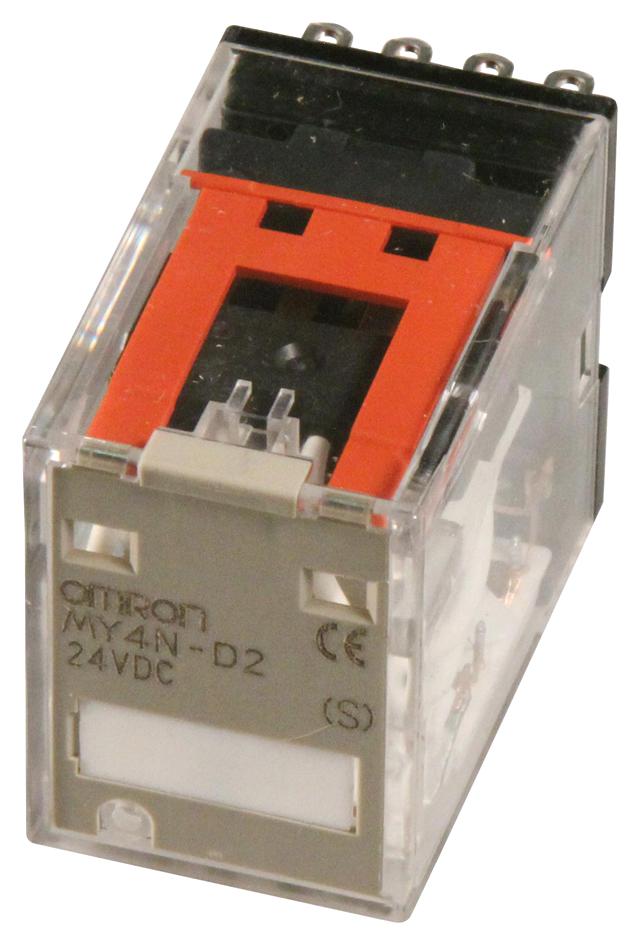

Omron MY4N-D2 24VDC Relay

Name: Omron MY4N-D2 24VDC Relay
Brand: Vibe Technologies
Price: 400.0 INR
Availability: InStock

Price 400.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

Omron MY4N-D2 24VDC Relay Specification

Size
Approx. 27.5 mm x 21.5 mm x 35.5 mm

Type
Electromechanical Relay

Installation Type
Plug-in or Socket-mount

Power
Approx. 1.2 W (coil consumption)

Power Source
DC

Voltage
24V DC (coil voltage)

Color
Transparent cover, black base

Material
Polycarbonate cover, plastic base

Remote Operated
No

Release Time
20 ms max.

Dielectric Strength
2,000 VAC between coil and contacts for 1 min

Operating Time
20 ms max.

Mechanical Life
10,000,000 operations minimum

Electrical Life
500,000 operations minimum

Contact Current Rating
5A (resistive load)

Operating Temperature Range
-55C to +70C

With Indicator and Test Button
Yes (MY4N-D2 variant)

Coil Resistance
650 (10%)

Contact Voltage Rating
250V AC/30V DC (max load)

Contact Configuration
4PDT (4 Pole Double Throw), 14 pins

Omron MY4N-D2 24VDC Relay Trade Information

Minimum Order Quantity
5 Pieces

Delivery Time
1 Week

About Omron MY4N-D2 24VDC Relay

The Omron MY4N-D2 24VDC is a versatile, miniature 4PDT (4 Changeover/Form C) plug-in power relay for 24V DC control, featuring gold-plated silver alloy contacts, an LED indicator, a built-in surge suppression diode, and a latching lever (on 'S' types), designed for industrial control, automation, and general electrical switching, offering easy identification with color-coded tape and compatibility with specific sockets for reduced wiring.

Key Features & Specifications:

Coil Voltage: 24V DC (nominal).
Contact Configuration: 4PDT (4 Changeover/Form C).
Contact Rating: 3 Amps at 250V AC / 30V DC.
Mounting: Plug-in (14-pin).
Indicators: LED for coil status and often a mechanical indicator.
Protection: Built-in diode for coil surge absorption.
Latching Lever: Available on 'S' versions for easy circuit checks.
Contact Material: Gold-plated Silver Alloy (Au/Ag) for reliability.
Identification: Color-coded tape (usually blue for DC) for quick distinction.

Robust Design and Versatile Application

The Omron MY4N-D2 relay is crafted to deliver consistent performance in a variety of industrial and commercial environments. Its transparent polycarbonate cover and black base provide clear visibility and durability. Whether you require automation, control, or signaling, this relay's dependable 4PDT configuration ensures adaptability and safe operation up to 250V AC or 30V DC.

Durability with Long Service Life

Engineered with longevity in mind, the MY4N-D2 offers at least 10,000,000 mechanical operations and 500,000 electrical operations. Its advanced dielectric strength and rugged design allow it to perform efficiently even under demanding conditions, reducing the need for frequent replacements in your installations.

Ease of Installation and Monitoring

The plug-in (socket-mount) design allows for quick installation or replacement, making it suitable for fast-paced industrial environments. The integrated indicator and test button simplify maintenance and testing processes, allowing operators to verify relay status at a glance.

FAQ's of Omron MY4N-D2 24VDC Relay:

Q: How can the Omron MY4N-D2 24VDC relay be installed in a control panel setup?

A: The MY4N-D2 relay is designed for easy installation using a compatible socket-mount base. Simply plug the relay into the matching 14-pin socket, ensuring alignment, and secure it for stable operation. This allows for quick exchanges and minimal wiring modifications in control panels.

Q: What is the main benefit of the 4PDT (4 Pole Double Throw) contact configuration?

A: A 4PDT configuration provides four independent switching circuits, each with both normally open and normally closed contacts. This flexibility allows you to control multiple circuits or signals simultaneously, enhancing the versatility of your control system.

Q: When should the indicator and test button be used on this relay?

A: Use the built-in indicator to visually verify relay coil status (energized or de-energized). The test button can be operated during maintenance or troubleshooting to manually actuate the relay without applying power to the coil, making it easier to confirm wiring and contact functionality.

Q: Where is the Omron MY4N-D2 relay commonly used?

A: This relay is widely used in industrial automation, control panels, machinery interlocks, and signaling systems. Its robust design and electrical ratings make it ideal for both commercial and factory settings throughout India.

Q: What is the operating temperature range and why is it important?

A: The relay operates reliably between -55C and +70C. This wide range ensures dependable performance in environments subject to temperature fluctuations, making it suitable for both indoor installations and challenging industrial locations.

Q: How can users benefit from the mechanical and electrical longevity of this relay?

A: With a mechanical life of at least 10,000,000 operations and an electrical life of 500,000 operations, users will experience minimized downtime and reduced replacement costs, leading to increased system reliability and long-term savings.
