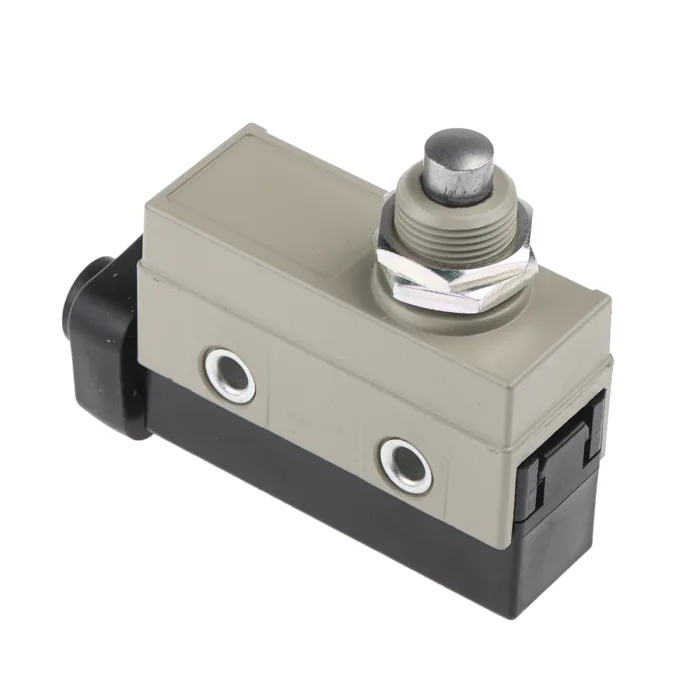

ZC-Q55 Omron Limit Switches

Name: ZC-Q55 Omron Limit Switches
Brand: Vibe Technologies
Price: 650.0 INR
Availability: InStock

Get a Price/Quote

MOQ : 3 Pieces

ZC-Q55 Omron Limit Switches Specification

Material
metal

Housing Material
Die-cast zinc

Dielectric Strength
1,000 VAC, 50/60 Hz for 1 min between terminals

Vibration Resistance
Malfunction: 10 to 55 Hz, 1.5-mm double amplitude

Contact Configuration
SPDT (Single Pole Double Throw)

Compliance
RoHS compliant

Terminal Type
Screw terminal

Standard Certifications
CE, cULus listed

Actuator Type
Plunger (Pin plunger type)

Shock Resistance
Malfunction: 300 m/s²

Short Circuit Protection
Requires external fuse

ZC-Q55 Omron Limit Switches Trade Information

Minimum Order Quantity
3 Pieces

Delivery Time
1 Week

About ZC-Q55 Omron Limit Switches

The Omron ZC-Q55 is a miniature, panel-mount plunger-type enclosed limit switch designed for high-precision, automated tasks such as on assembly lines or in packaging systems. Key features include a small size, high accuracy and repeatability, long service life, and low operating force compared to standard limit switches. It offers a durable, IP67-rated design with a built-in basic switch for environmental protection and snap-action contacts for immediate response.

Reliable Operation Under Tough Conditions

Equipped with a durable die-cast zinc housing and sealed to IP67 standards, the ZC-Q55 Limit Switch withstands dust, water, vibration, and shock. It is engineered to operate reliably within a temperature range of -10C to +80C and supports at least 10 million mechanical operations, making it a trusted choice for demanding industrial environments.

Precise Actuation and Flexible Installation

The pin plunger actuator type enables exact position detection with a 1 mm stroke and snap-action contacts for swift response. Designed for panel or surface mounting, its compact rectangular body is suitable for space-constrained setups. Wired via screw terminals, installation is straightforward and secure.

FAQ's of ZC-Q55 Omron Limit Switches:

Q: How is the ZC-Q55 Omron Limit Switch installed?

A: The switch can be mounted on panels or surfaces using standard mounting holes. Its compact rectangular shape and screw terminals make wiring and installation convenient and secure, suitable for various automation setups.

Q: What type of applications benefit from using this limit switch?

A: Industries requiring precise position or limit detection in automated systems, such as machinery, conveyor lines, and robotics, find the ZC-Q55 extremely beneficial due to its high mechanical life, robust construction, and fast response time.

Q: What is the maximum electrical and mechanical capacity of the ZC-Q55?

A: The switch is rated for up to 10A at 250VAC and supports a mechanical life of at least 10 million operations, ensuring reliable long-term performance in high-frequency usage scenarios.

Q: When should an external fuse be used with this device?

A: External short circuit protection, such as a fuse, must be installed to safeguard the device during operation, as the ZC-Q55 does not include internal protection against short circuits.

Q: Where can the ZC-Q55 be safely operated?

A: This limit switch is suitable for environments with temperatures ranging from -10C to +80C, and its IP67 rating allows it to function reliably in dusty, wet, or industrial settings.

Q: What certifications ensure the quality and compliance of the ZC-Q55?

A: The ZC-Q55 is RoHS compliant and carries CE and cULus listings, confirming that it meets international safety and environmental standards for industrial automation products.
