INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card

Send Inquiry

Request To Call Back

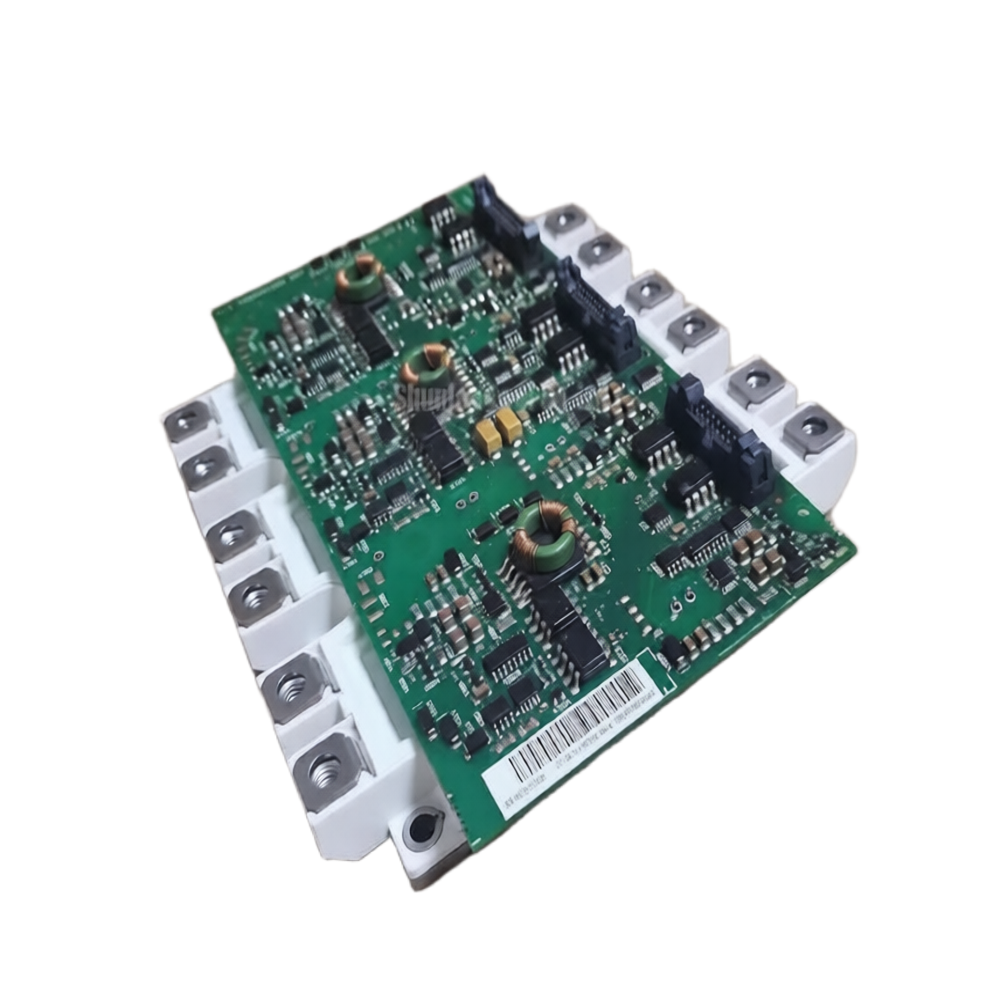

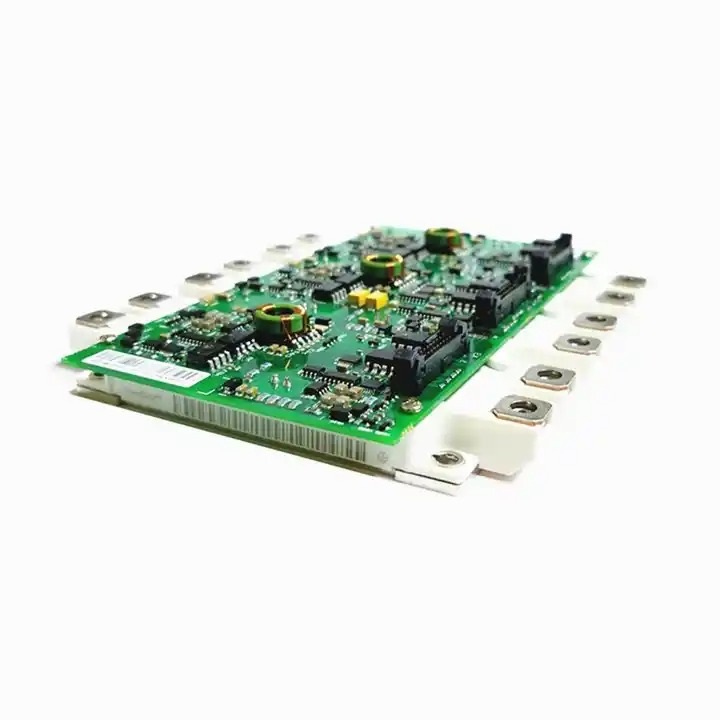

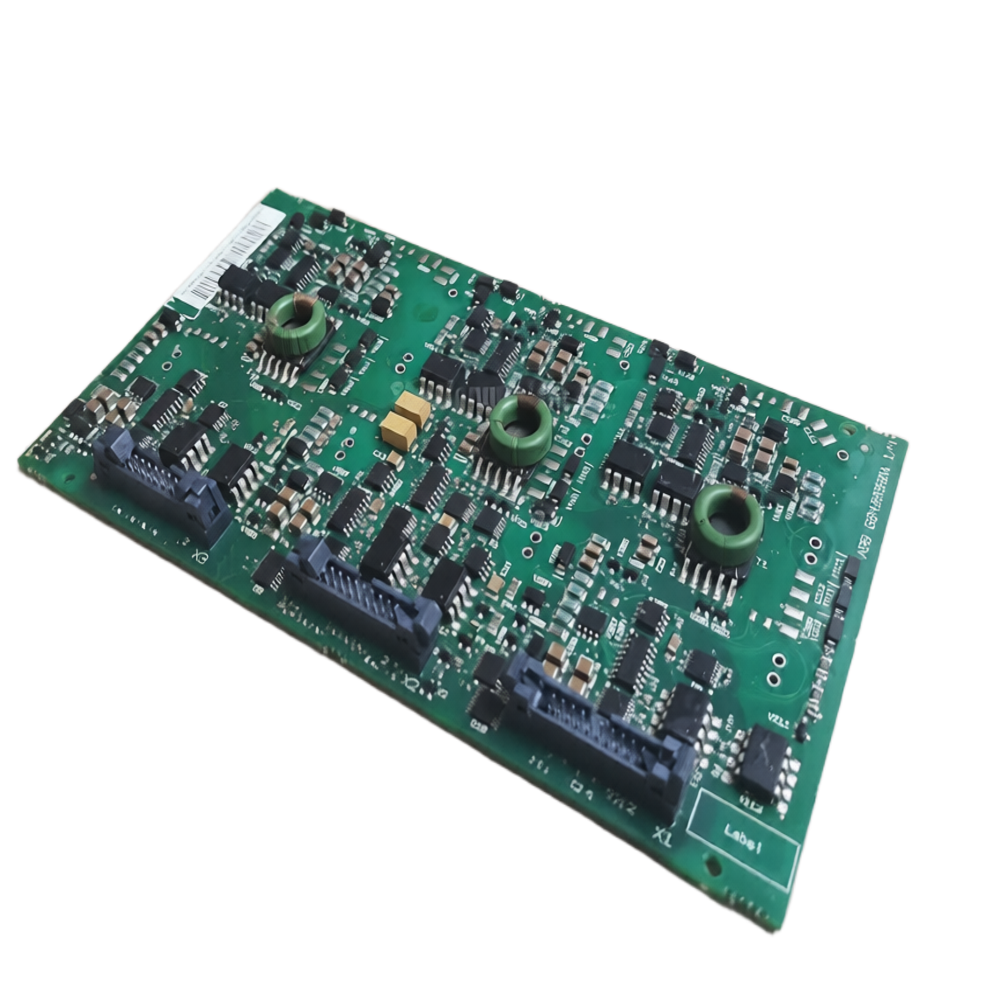

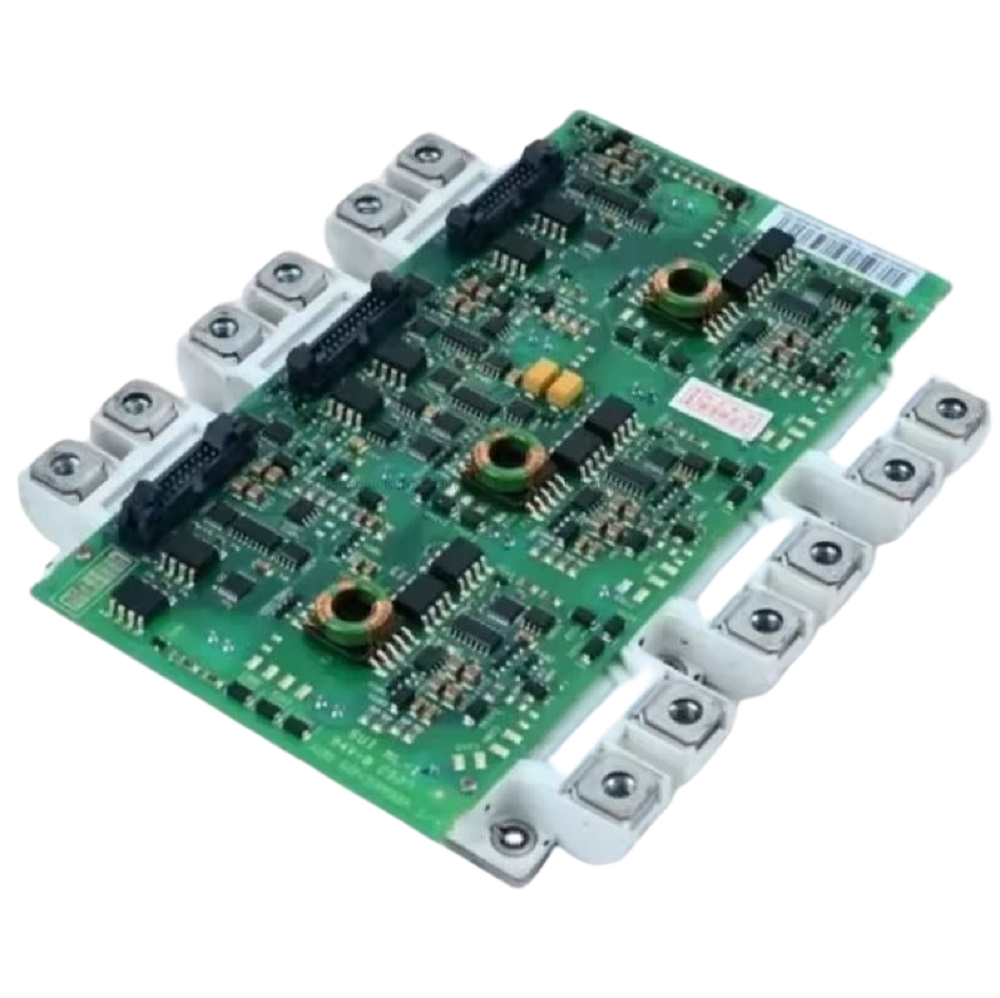

INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card

Name: INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card
Brand: Vibe Technologies
Price: 50000.0 INR
Availability: InStock

Price 50000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card Specification

Insulation Material
FR4/Epoxy Glass

Operating Temperature
-40C to +85C

Surface Finish
PCB Lacquered/Coated

IP Rating
IP20 (typically for enclosure use)

Mounting Type
Panel Mount

Power Factor
NA (Control Card)

Humidity %
<95% RH, non-condensing

Shape
Rectangular

Overheating Protection
YES

Connector Type
Screw Terminal, Male/Female Header

Feature
High performance, Reliable, Short-circuit protection

Efficiency
Up to 98%

Product Type
IGBT Module Drive Card

Application
Industrial Motor Drives, Inverters, Power Electronics

Protection Level
Overvoltage, Overcurrent

Frequency (MHz)
50 - 60 Hz

Rated Voltage
1700 V

Energy Consumption
Low (Control Card only)

Output Type
PWM Signal

Color
Green/Blue PCB

Dimension (L*W*H)
260 mm x 100 mm x 35 mm (Approx.)

Weight
Approx. 1 kg

Input Voltage
15V - 24V DC

Size
Standard/Custom as per drive

Phase
Three Phase

Material
PCB with electronic components

Connection Type
Terminal block/Connector

Status Indication
On-board LEDs

Compatibility
FS450R17KE3 IGBT Modules

Quality Standard
ISO 9001 Certified Manufacturing

Storage Temperature
-40C to +100C

Signal Isolation
Opto-coupler based

Response Time
< 1 s

Spare Parts Availability
Available on request

EMI/EMC Compliance
Designed to meet industrial standards

PCB Layers
Multi-layer

Control Mode
Gate Driver for IGBT Modules

Input Signal
24VDC Logic

Model Number
FS450R17KE3-AGDR-71C

Cooling Type
Convection/Air

INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
3 Week

About INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card

Configuration : Sixpack (Three-Phase Inverter Configuration)
Package / Case : EconoPACK + B Module Package
NTC Thermistor : Integrated NTC Temperature Sensor Included
IGBT Type : Trench Field Stop IGBT Technology
Operating Temperature : -40C to +150C Junction Temperature Range
Brand : Infineon Technologies
Application : Industrial AC Drives, Servo Drives, Solar Inverters, Wind Energy Systems, UPS Systems, Welding Equipment, High-Power Switching Applications
Collector-Emitter Voltage : 1700 V
Collector Current : 450 A
Gate Driver Card : AGDR-71C Intelligent Gate Driver
Mounting Type : Chassis Mount
Cooling Method : Heatsink Based Air / Liquid Cooling
Protection Features : DESAT Protection, Under Voltage Lockout (UVLO), Short Circuit Protection
Switching Frequency : High-Speed Switching Performance
Technology : TrenchSTOP IGBT3 Technology
Module Type : High Power IGBT Module with Driver Card
Usage : Motor Control and Power Conversion Applications

Advanced Gate Driving Performance

Utilizing an advanced control scheme, the FS450R17KE3-AGDR-71C provides pulse-width modulation (PWM) signals for efficient and accurate IGBT gate driving. Opto-coupler isolation guarantees signal integrity, minimizing risks associated with electrical noise and interference. The board's on-board LEDs allow easy status monitoring, and its protection features, such as overcurrent and overheating safeguards, deliver reliability for continuous industrial operation.

Designed for Industrial Environments

Built to meet rigorous EMI/EMC and ISO 9001 manufacturing standards, the drive card thrives in demanding industrial settings. The convection/air-cooling design along with the IP20 rating supports safe, enclosed panel installations. Multi-layer PCB construction and a lacquered surface enhance durability and longevity, while efficient design helps minimize control card energy consumption.

FAQ's of INFINION 450A FS450R17KE3-AGDR-71C IGBT Module Drive Card:

Q: How is the FS450R17KE3-AGDR-71C drive card installed in an industrial setting?

A: The module is designed for panel mounting using standard enclosure practices, utilizing terminal blocks or connectors for wiring. The installation process ensures secure connections while its IP20 enclosure rating provides safety during operation.

Q: What applications is this IGBT driver card suitable for?

A: It is ideal for industrial motor drives, inverters, and power electronics where precise three-phase IGBT module control is required.

Q: What type of input signals does the drive card accept and what is its response time?

A: The card accepts 24VDC logic inputs and offers a rapid response time of less than 1 second, ensuring timely and reliable operation of the IGBT modules.

Q: Where can I obtain spare parts or replacement cards for maintenance?

A: Spare parts and replacement modules are available upon request from the manufacturer or supplier, ensuring ongoing support and uninterrupted operation.

Q: What protective features are integrated into this drive card?

A: The board includes overvoltage, overcurrent, short-circuit, and overheating protection systems, safeguarding both the control card and connected IGBT modules during abnormal or fault conditions.

Q: What are the main benefits of using this drive card in my power electronics system?

A: Key advantages include high efficiency (up to 98%), reliable fault protection, easy status monitoring via LEDs, long lifespan, and compliance with industrial standards, supporting optimized and stable system performance.
