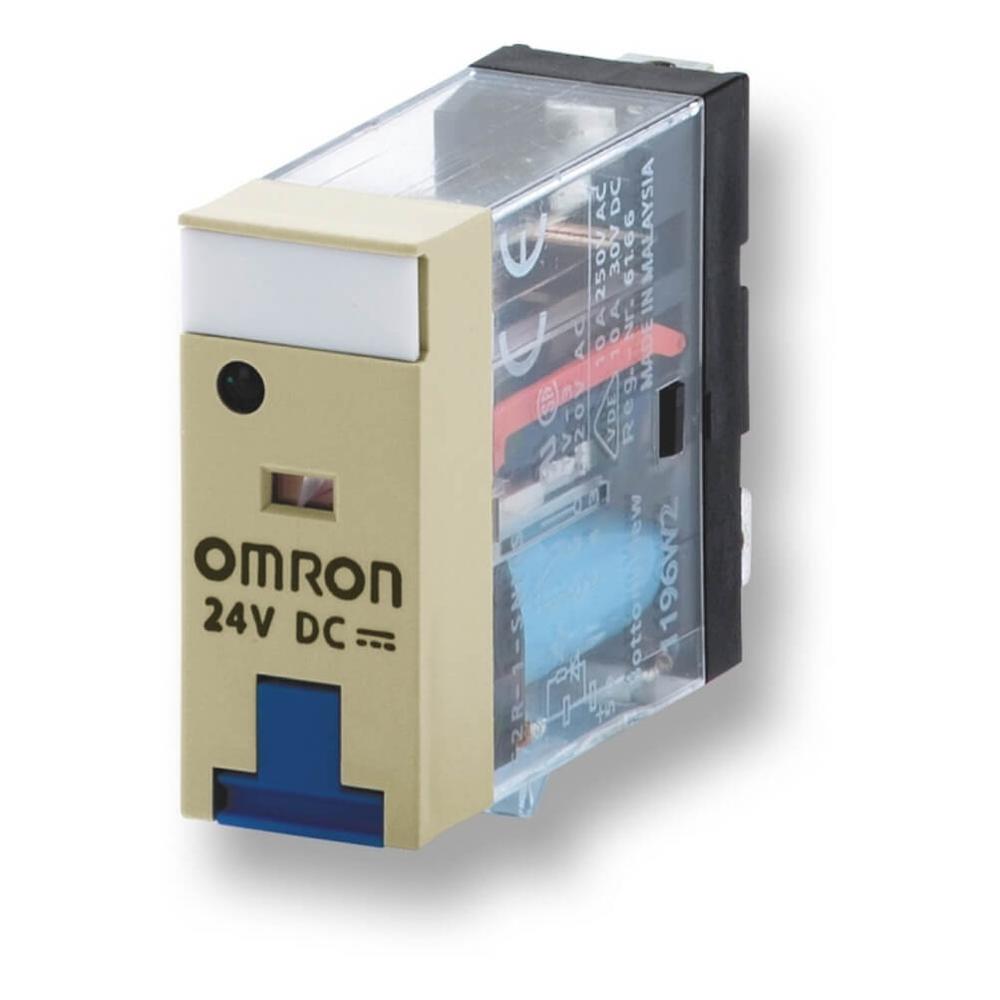

G2R-1-SNI-DC24 Omron Relay

About G2R-1-SNI-DC24 Omron Relay

The Omron G2R1-SNI-DC24S is a versatile general purpose relay designed for efficient switching in various electronic and industrial applications This relay features a Single Pole Double Throw SPDT contact configuration also known as 1 Form C allowing it to switch between a normally open NO and a normally closed NC contact It operates with a 24V DC coil voltage drawing a coil current of 216 mA with a coil resistance of 11 k The relays contacts are rated for a maximum switching capacity of 4400 VA or 1250 W accommodating both AC and DC loads The maximum switching voltage is 440 VAC and 125 VDC with a maximum contact current of 10 A for both AC and DC circuits The contacts are constructed from silver alloy ensuring durability and low contact resistance The G2R1SNIDC24S is designed for socket mounting simplifying installation and maintenance It operates effectively within a temperature range of 40C to 70C and has a power consumption of approximately 053 W The relays compact design and reliable performance make it suitable for applications such as automation systems control panels and industrial machinery Additionally it features an LED indicator for status monitoring and a test button for manual operation verification
