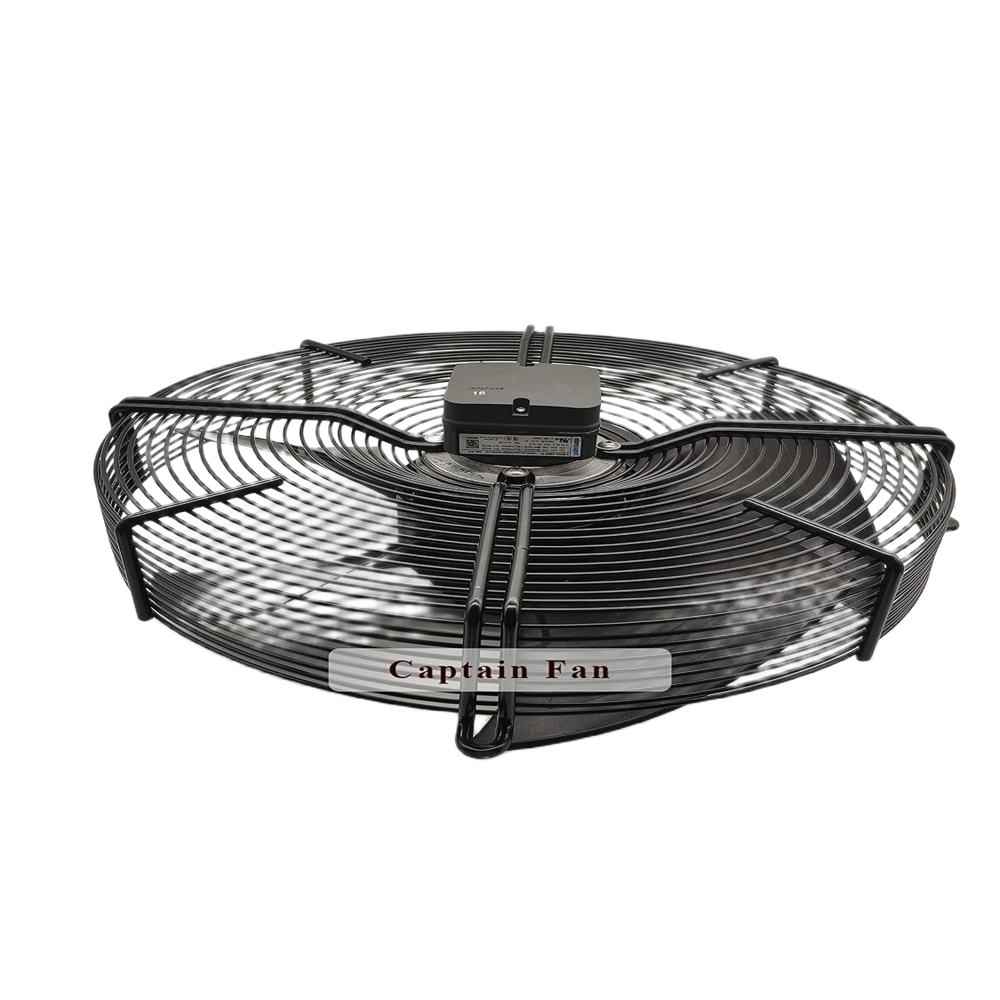

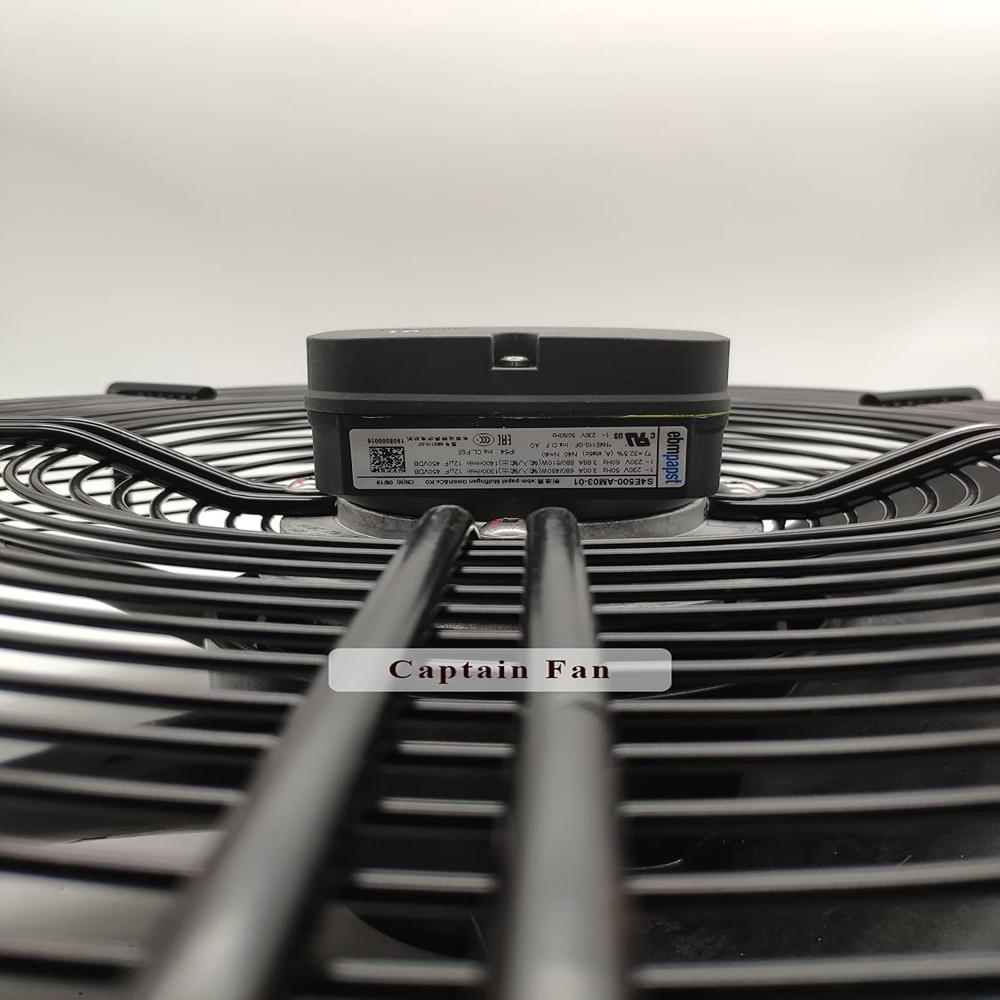

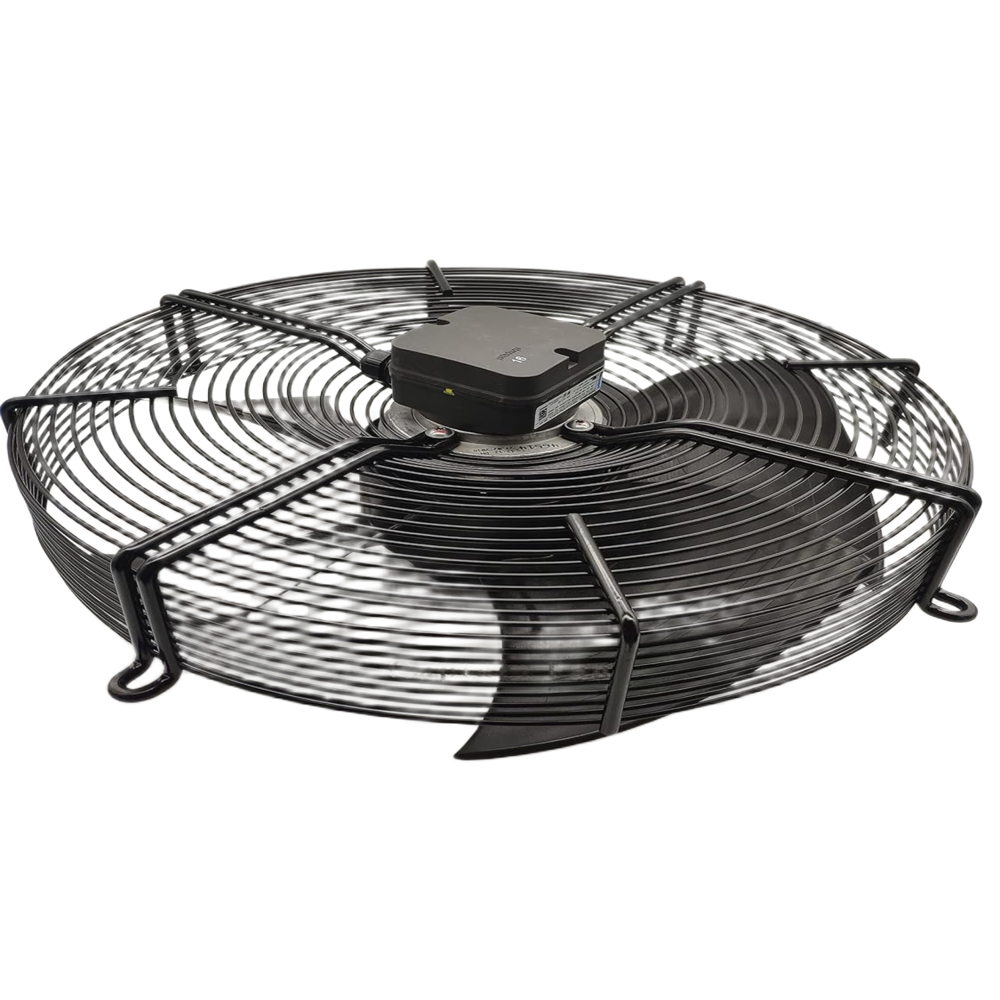

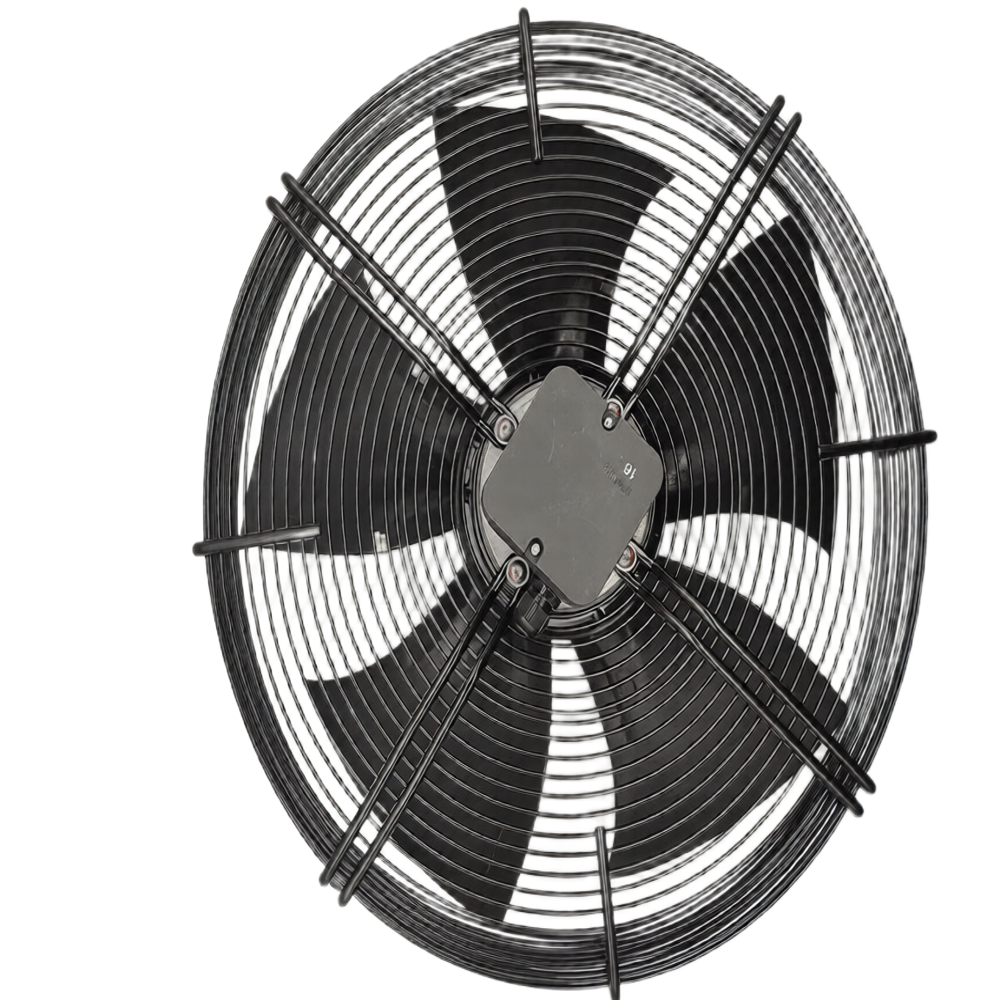

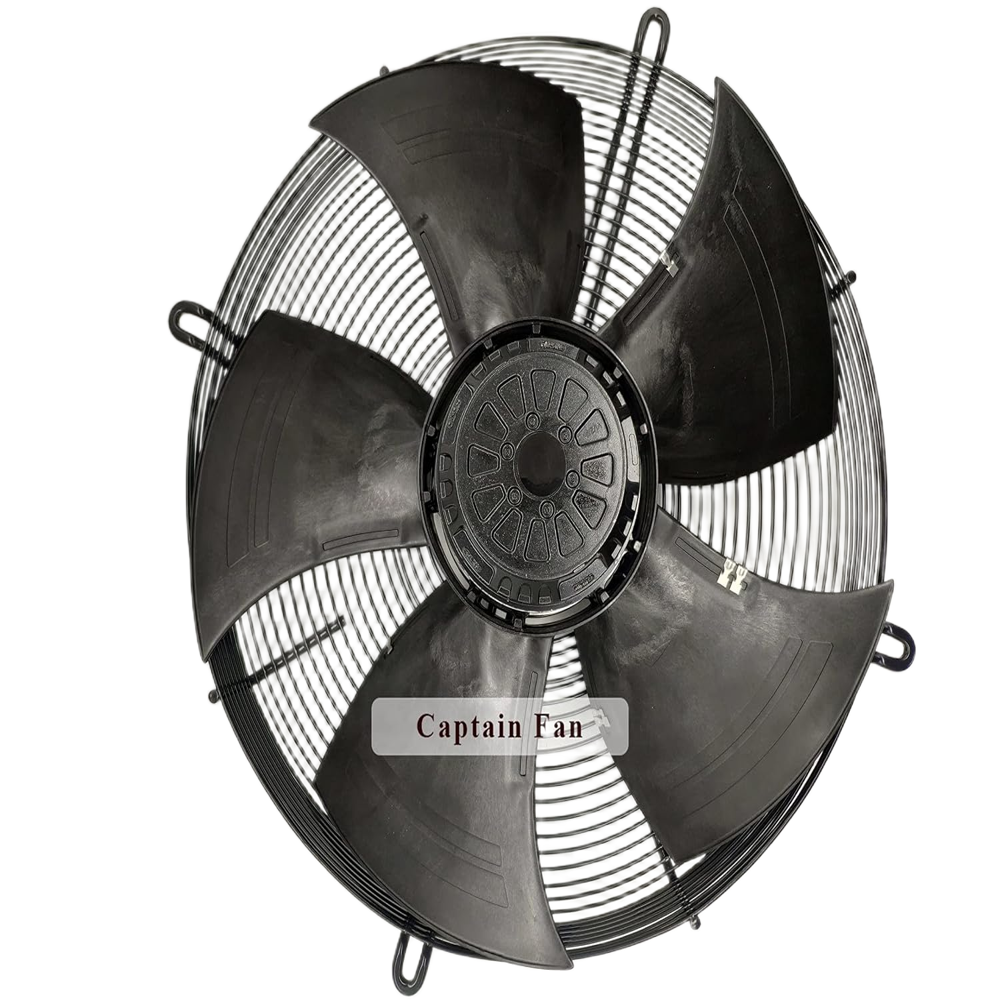

S4E500-AM03-01 Fans 230VAC 680/880W Axial Cooling Fan

About S4E500-AM03-01 Fans 230VAC 680/880W Axial Cooling Fan

The ebm-papst S4E500-AM03-01 is a premium 230V AC HyBlade axial cooling fan designed for high-performance industrial ventilation, refrigeration, HVAC, condensers, evaporators, heat exchangers, and air-cooled systems. Featuring an advanced 500 mm HyBlade impeller, maintenance-free ball bearing motor, and integrated thermal overload protection, it delivers airflow up to 8,905 m/h while maintaining excellent energy efficiency and low noise levels. Its rugged IP44-rated construction, durable steel guard grille, and continuous-duty design ensure reliable operation in demanding industrial environments. The S4E500-AM03-01 is an ideal solution for applications requiring high airflow, long service life, and dependable cooling performance.

• Model: S4E500-AM03-01
• Fan Type: AC Axial Cooling Fan
• Application Type: Wall Mounted / Tube Axial
• Series: S Series (HyBlade)
• Fan Size: 500 mm (20")
• Supply Voltage: 230 VAC
• Frequency: 50/60 Hz
• Phase: Single Phase
• Motor Type: External Rotor AC Motor (M4E110-GF)
• Motor Power: 680 W (50 Hz) / 880 W (60 Hz)
• Current Rating: 3.0 A (50 Hz) / 3.88 A (60 Hz)
• Speed: 1300 RPM (50 Hz) / 1400 RPM (60 Hz)
• Air Flow: Up to 8,905 m/h (5,240 CFM)
• Bearing Type: Maintenance-Free Ball Bearing
• Blade Material: HyBlade Composite (Aluminium Core with Plastic/PP)
• Number of Blades: 5
• Protection Rating: IP44
• Insulation Class: F
• Motor Protection: Thermal Overload Protector (TOP)
• Capacitor: 12 F / 450 V
• Operating Temperature: -40C to +65C (50 Hz), up to +40C (60 Hz)
• Mounting Position: Shaft Horizontal or Rotor Down
• Rotation Direction: Counter-Clockwise (Viewed from Rotor Side)
• Operating Mode: Continuous Duty (S1)
• Overall Dimensions: 525 179 mm
• Net Weight: Approx. 12.9 kg
• Package Dimensions: 560 560 240 mm (Approx.)
• Gross Weight: Approx. 14.0 kg
