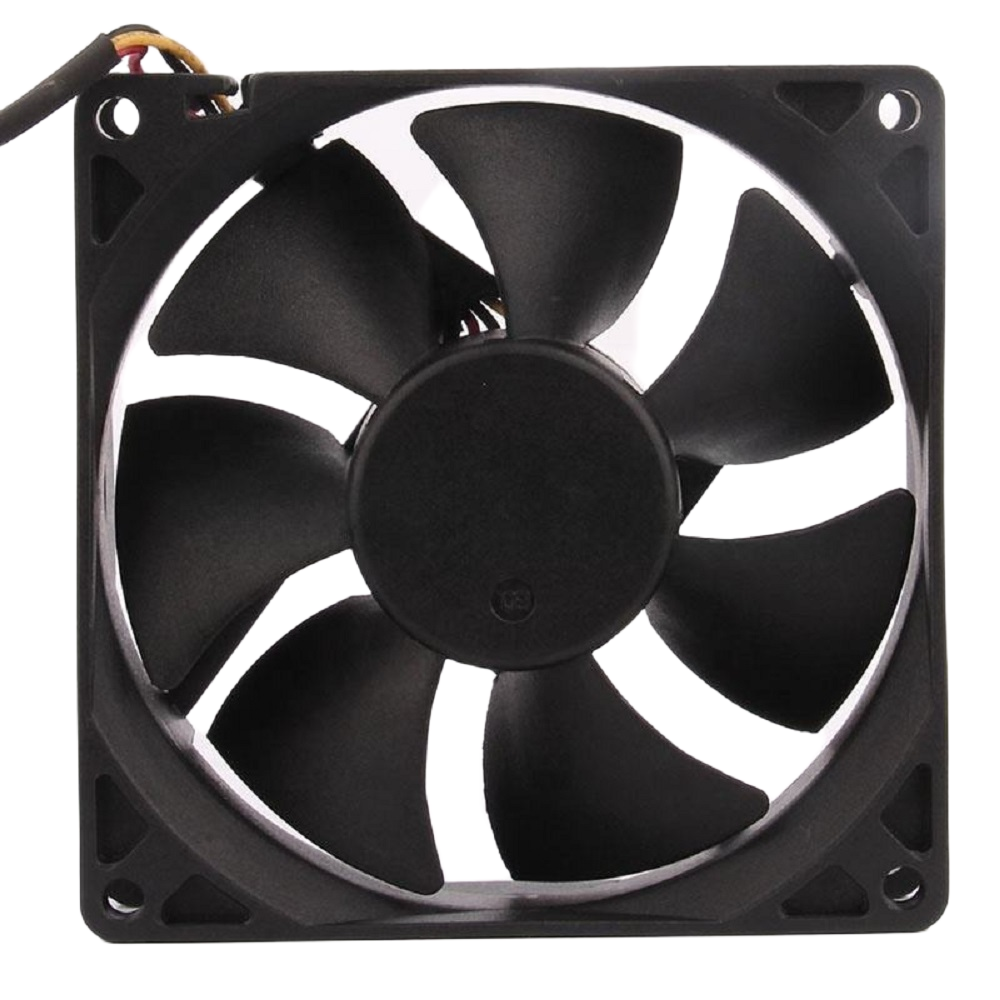

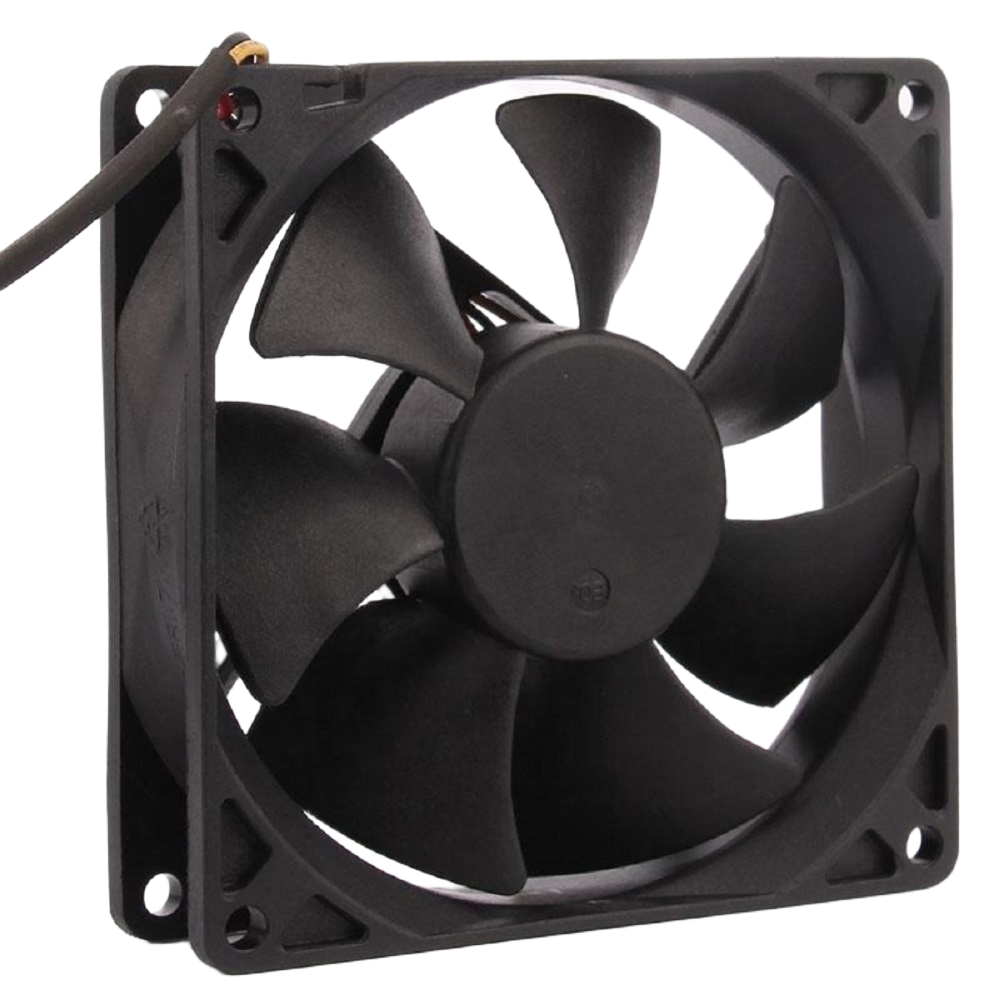

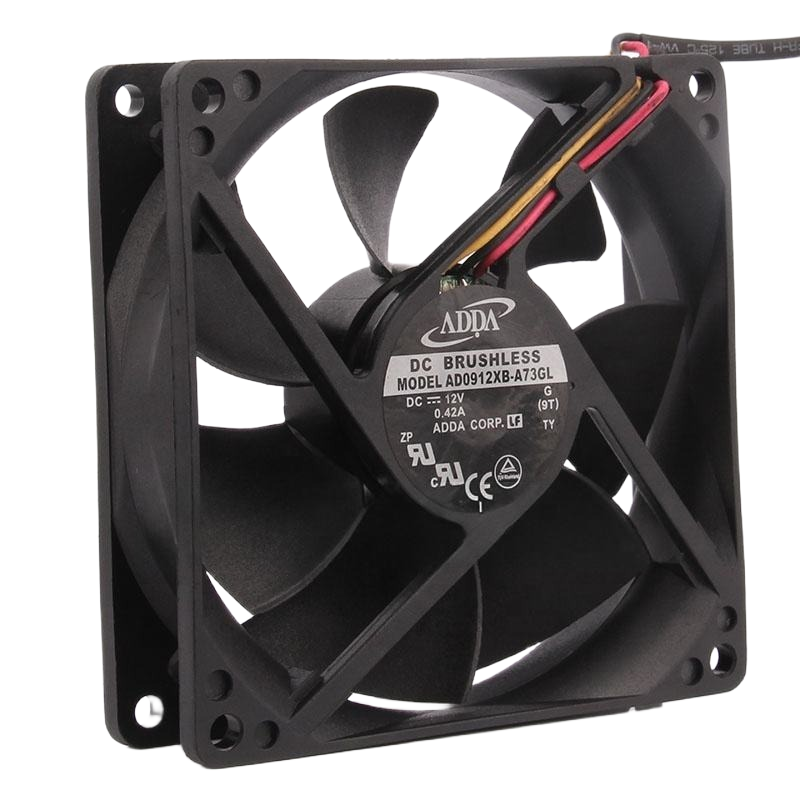

ADDA AD0912XB-A73GL Cooling Fan

About ADDA AD0912XB-A73GL Cooling Fan

ADDA AD0912XB-A73GL is a high-performance DC brushless axial cooling fan engineered for industrial equipment, servers, telecom systems, power supplies, UPS units, and electronic control panels. It delivers high airflow, efficient heat dissipation, low vibration, and reliable continuous-duty operation with a long-life dual ball bearing design.

Brand : ADDA

Model : AD0912XB-A73GL

Fan Type : DC Brushless Axial Cooling Fan

Bearing Type : Dual Ball Bearing

Rated Voltage : 12 VDC

Operating Voltage : 7.0 ~ 13.8 VDC

Rated Current : 1.20 A

Power Consumption : 14.4 W

Fan Size : 92 x 92 x 38 mm

Speed : Approx. 6000 RPM

Air Flow : Approx. 110 CFM

Static Pressure : High Static Pressure Design

Noise Level : Approx. 58 dBA

Connection Type : 3-Wire Lead

Motor Type : Brushless DC Motor

Frame Material : Thermoplastic (UL94V-0)

Operating Temperature : -10C to +70C

Application : Servers, Telecom Equipment, Industrial Machinery, UPS Systems, Power Supplies, Electronic Enclosures, Control Panels

Net Weight : Approx. 280 g (0.28 kg)

Package Dimensions (Inch) : 5.5 x 5.5 x 2.5 Inch

Package Dimensions (cm) : 13.97 x 13.97 x 6.35 cm

Package Weight : Approx. 350 g (0.35 kg)

Features : High Airflow Performance, Long Life Ball Bearing, Reliable Continuous Operation, Low Vibration, Industrial Grade Cooling, Efficient Heat Dissipation.
