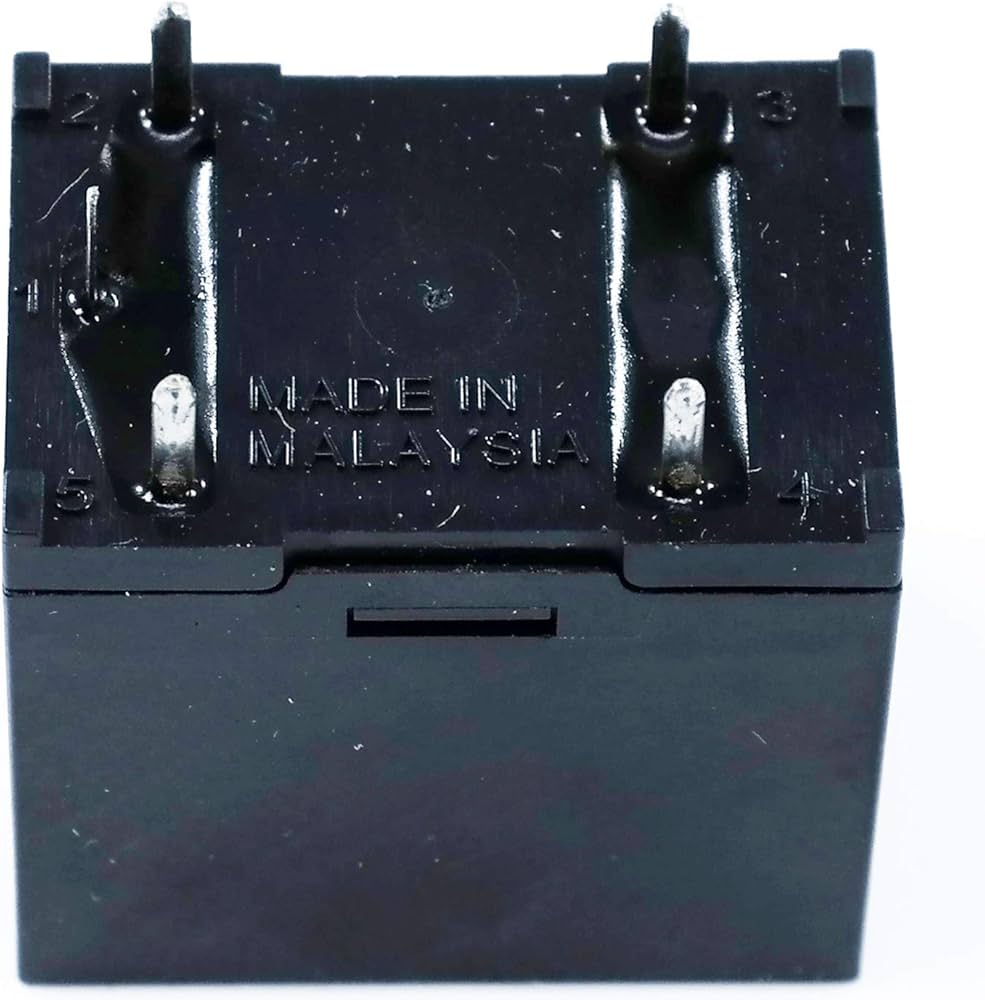

Omron G5PZ-1A-DC12 Single Pole Power Relay

Get a Price/Quote

MOQ : 10 Pieces

Omron G5PZ-1A-DC12 Single Pole Power Relay Specification

Coil Voltage
12 VD Volt (V)

Contact Form
SPST-NO (1 Form A)

Product Type
Power relay

Usage
Switching

Rated Voltage
12 Volt (V)

Usage & Applications
Air conditioners, refrigerators, and washing machines

Operating Temperature
-40 C to 70 C Celsius (oC)

Color
Black

Weight
10.5 Grams (g)

Warranty
1 year

Omron G5PZ-1A-DC12 Single Pole Power Relay Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Paypal

Supply Ability
300 Pieces Per Month

Delivery Time
1 Week

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Domestic Market
All India

About Omron G5PZ-1A-DC12 Single Pole Power Relay

The

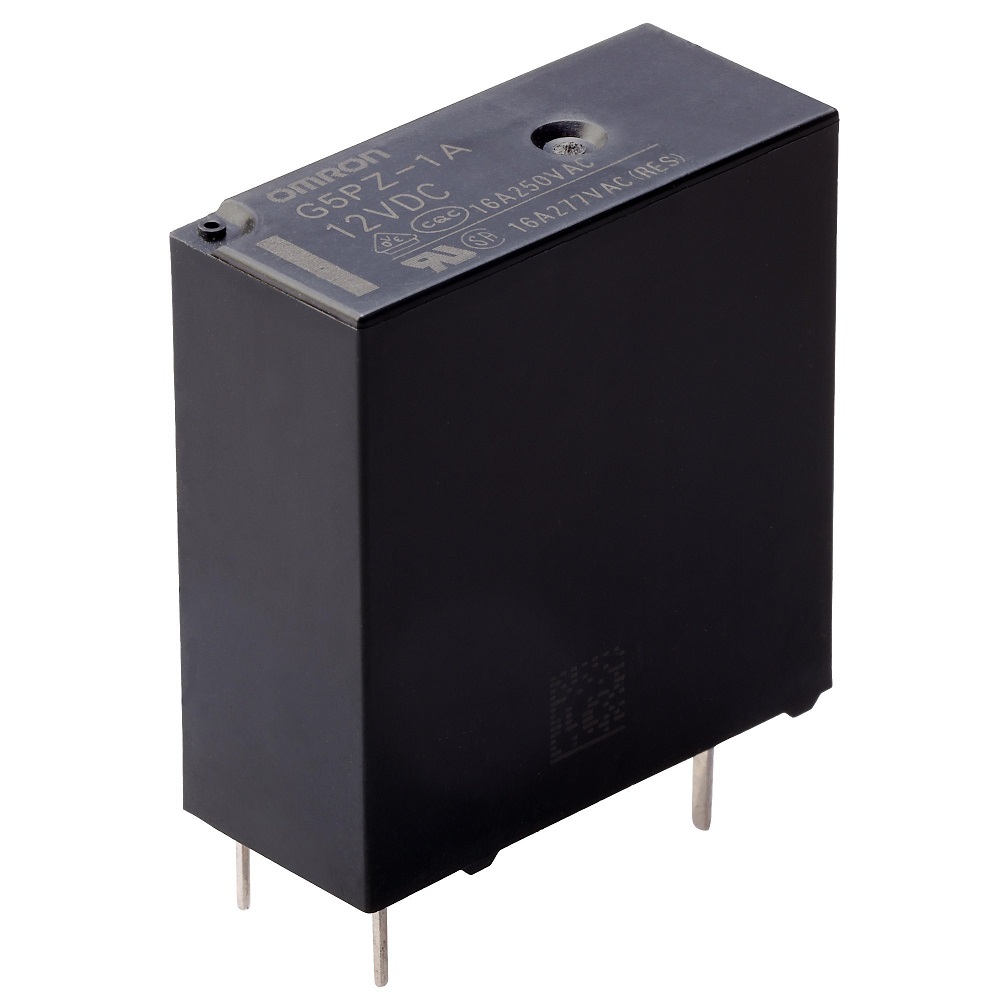

Omron G5PZ-1A-DC12 is a compact, single-pole (SPST-NO) PCB power relay designed for high-switching applications in industrial and home appliance environments. It features a slim 10.5mm width, 12VDC coil voltage, and a 16A switching current.

Key Features & Highlights

Compact Design: 10.5mm (W) x 23.8mm (L) x 24.9mm (H) footprint, ideal for space-constrained PCB designs.
High Switching Capacity: 16A at 250VAC, with high-capacity (-E) models supporting up to 20A.
High Sensitivity: Low coil consumption of 530mW, with further energy savings possible at a 50% holding voltage.
Robust Insulation: Minimum 6.4mm insulation distance and 10kV impulse withstand voltage between coil and contacts.
Environmental Protection: Flux protection seal rating.
Certifications: Compliant with UL, VDE, TUV, and CSA standards.

Technical Specifications

Model: G5PZ-1A-DC12
Coil Voltage: 12 VDC
Contact Form: SPST-NO (1 Form A)
Switching Current: 16 A
Switching Voltage: 250 VAC (max)
Coil Resistance: 272
Operating Temperature: -40C to 70C
Mounting Type: Through-hole PCB

Typical Applications

Home Appliances: Air conditioners, refrigerators, and washing machines.
Industrial Machinery: Automation equipment and control systems.
Power Solutions: Uninterruptible Power Supplies (UPS) and solar inverters

Versatile Application Range

The Omron G5PZ-1A-DC12 relay is specifically engineered for seamless integration in air conditioners, refrigerators, and washing machines. Its strong contact design and reliable switching capability make it an excellent choice for controlling various electrical loads in domestic and light industrial settings.

Outstanding Durability and Temperature Tolerance

With an operational spectrum ranging from -40C to 70C, this relay remains stable in extreme climatic conditions. Its sturdy build enhances longevity, ensuring consistent performance even when subjected to fluctuating or harsh environments.

Compact Design for Easy Installation

Weighing just 10.5 grams, the G5PZ-1A-DC12 boasts a compact and lightweight design. This facilitates simple installation within tight spaces, making it highly suitable for modern appliances where form factor is critical.

FAQ's of Omron G5PZ-1A-DC12 Single Pole Power Relay:

Q: How do I install the Omron G5PZ-1A-DC12 relay in my appliance?

A: The Omron G5PZ-1A-DC12 should be installed on a compatible PCB or within your appliance's control system, ensuring the coil voltage matches 12V DC and that you observe correct contact orientation for safe, reliable switching.

Q: What makes this relay suitable for use in air conditioners, refrigerators, and washing machines?

A: This relay is designed to handle the switching demands of household appliances due to its robust SPST-NO (1 Form A) contact configuration, reliable 12V operation, and broad temperature tolerance, ensuring stable performance in variable environments.

Q: When should I consider replacing the relay in my appliance?

A: You should consider replacing the relay if you experience issues such as erratic operation, clicking without switching, or failure to power the load. The 1-year warranty offers additional peace of mind for replacement needs.

Q: Where can I purchase the Omron G5PZ-1A-DC12 relay in India?

A: You can obtain this relay from authorized manufacturers, suppliers, and traders throughout India. Online electronics components retailers and specialist distributors also stock this model.

Q: What is the benefit of using this relay for switching operations?

A: The key benefit of this relay lies in its dependable electrical performance, compact build, and ability to function across a wide temperature range. These characteristics help enhance the longevity and reliability of your appliances.

Q: What is the process for warranty service if the relay fails within one year?

A: In the event of failure within the 1-year warranty period, contact your supplier or dealer with proof of purchase to initiate a replacement or service process as per the warranty terms.
